AI Agents With RAG: Architecture, Implementation, Evaluation, and Production Guide

AI agents with retrieval-augmented generation (RAG) combine two complementary patterns. RAG retrieves relevant information from external or private sources and supplies it to a language model as context. An agent uses a language model to decide which tools or information sources to use, often across several steps. A RAG retriever can be one of those tools.

They are not synonyms. RAG is a grounding and retrieval method; an agent is a decision-making and orchestration loop. Combining them lets an agent answer questions with current, specialized, or private information while still taking actions such as calling APIs, creating records, or inspecting a website.

How AI agents use RAG

A typical request follows this sequence:

1. The user sends a goal, such as “Find the refund rule for annual plans and draft a reply.”
2. The agent decides that a knowledge search is needed and calls a retriever tool.
3. The retriever turns the query into a representation, searches indexed content, and returns relevant passages plus metadata.
4. The agent gives those passages to the model as context, with instructions to use the sources and handle missing evidence.
5. The model produces an answer or chooses another tool. The loop can continue until the task is complete.

Retrieval can improve freshness and reduce unsupported answers, but it does not guarantee correctness. Bad parsing, stale documents, weak chunking, irrelevant matches, or a poorly formed query can still produce a bad response. Treat retrieval and generation as one system that must be measured together. Google Cloud describes this pattern in its RAG reference architecture and related AlloyDB and pgvector design.

Reference architecture: ingestion, serving, and evaluation

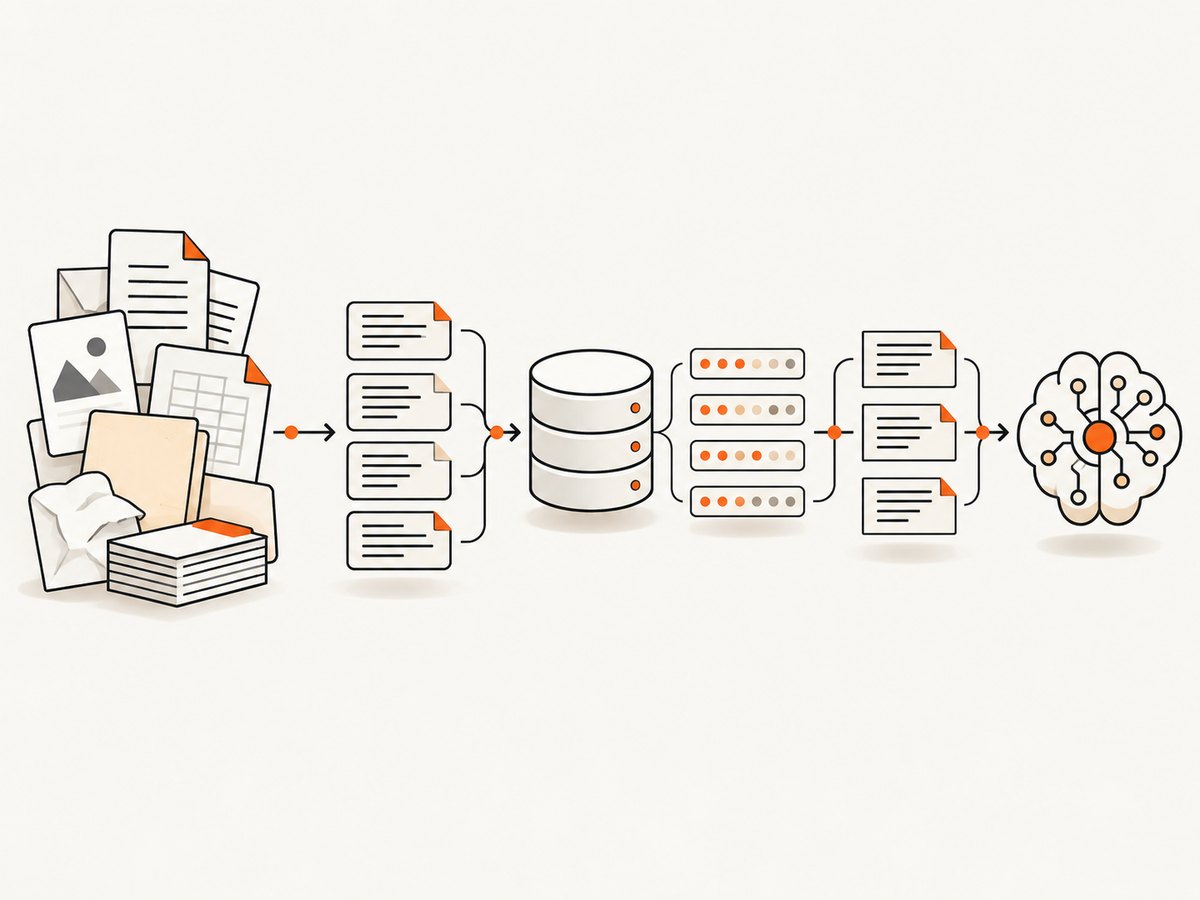

Separate the system into three flows so each can be operated and tested independently.

1. Ingestion flow

• Collect files, database rows, web pages, or stream events.
• Parse formats such as HTML, PDF, Markdown, and office documents.
• Normalize text, preserve titles and headings, and attach metadata such as tenant, permissions, URL, language, and update time.
• Split content into coherent chunks. Keep enough surrounding context to make a chunk understandable, but avoid putting unrelated sections together.
• Create embeddings and store vectors with the original text and metadata.

Use the same embedding model and relevant parameters for documents and user queries. A change to the model, dimensions, or preprocessing usually requires re-embedding the corpus. The Google Cloud example uses a processing trigger, parsing and chunking, embeddings, and vector storage in AlloyDB; that is one reference design rather than a universal requirement.

2. Serving flow

• Authenticate the user and apply tenant and document-level access filters.
• Rewrite the request when useful: resolve conversation references and add domain terms without changing intent.
• Embed the resulting query with the matching embedding configuration.
• Retrieve a candidate set, filter by permissions and metadata, and optionally rerank it.
• Construct a bounded context containing source text, titles, identifiers, and citations.
• Ask the model to answer from that context, state when evidence is missing, and return citations your application can display.

3. Quality-evaluation flow

Keep a stable test set of representative, difficult, and adversarial questions. Evaluate both retrieved passages and final answers. Useful measures include retrieval relevance, groundedness, question-answering quality, instruction following, safety, latency, and cost. Re-run the set after changes to chunking, embeddings, prompts, models, permissions, or tools. Google Cloud calls evaluation a core activity of generative AI development; its deployment guidance also recommends ongoing production evaluation.

Choosing storage and search components

Option	Strengths	Trade-offs
Managed vector search	Less infrastructure work and elastic search capacity	Service-specific APIs, pricing, and governance
Relational database with vectors	Vectors, transactions, and operational data in one system	Capacity planning and index tuning remain your responsibility
Open-source deployment	Maximum control over algorithms, topology, and data placement	You operate upgrades, scaling, backups, and incident response
Graph plus vector retrieval	Combines semantic similarity with explicit relationships	More modeling and query complexity

Choose by workload size, expected query rate, latency targets, security and compliance requirements, data residency, team expertise, and total operating cost. A managed service is not automatically cheaper, and a self-managed stack is not automatically more flexible in practice.

A runnable Python RAG agent

The following example is deliberately small and complete. It uses TF-IDF vectors and cosine similarity so it can run locally without a hosted embedding service. Install its only dependency with pip install scikit-learn. Replace the answer_with_model function with your model SDK in production; the retrieval and agent-tool boundary stays the same.

from dataclasses import dataclass
from typing import List, Dict
from sklearn.feature_extraction.text import TfidfVectorizer
from sklearn.metrics.pairwise import cosine_similarity

@dataclass
class Chunk:
    id: str
    text: str
    source: str
    tenant: str

DOCUMENTS = [
    Chunk("refund-1", "Annual plans can be refunded within 30 days of purchase.", "billing.md", "acme"),
    Chunk("refund-2", "Monthly plans are refundable for seven days after the first charge.", "billing.md", "acme"),
    Chunk("security-1", "Support requests must not include passwords or private keys.", "security.md", "acme"),
]

class Retriever:
    def __init__(self, chunks: List[Chunk]):
        self.chunks = chunks
        self.vectorizer = TfidfVectorizer(stop_words="english")
        self.matrix = self.vectorizer.fit_transform([c.text for c in chunks])

    def search(self, query: str, tenant: str, limit: int = 3) -> List[Dict]:
        allowed = [i for i, c in enumerate(self.chunks) if c.tenant == tenant]
        if not allowed:
            return []
        q = self.vectorizer.transform([query])
        scores = cosine_similarity(q, self.matrix[allowed]).ravel()
        ranked = sorted(zip(allowed, scores), key=lambda x: x[1], reverse=True)
        return [{"id": self.chunks[i].id, "text": self.chunks[i].text,
                 "source": self.chunks[i].source, "score": float(score)}
                for i, score in ranked[:limit] if score > 0]

def answer_with_model(question: str, passages: List[Dict]) -> str:
    if not passages:
        return "I could not find supporting information in the permitted sources."
    context = "\n".join(f"[{p['source']}] {p['text']}" for p in passages)
    # Send question and context to your chosen LLM here.
    return f"Answer using only these sources:\n{context}\n\nQuestion: {question}"

def agent(question: str, tenant: str = "acme") -> Dict:
    retriever = Retriever(DOCUMENTS)
    passages = retriever.search(question, tenant)
    answer = answer_with_model(question, passages)
    return {"answer": answer, "sources": passages}

if __name__ == "__main__":
    result = agent("Can I get a refund on an annual plan?")
    print(result["answer"])
    print("Sources:", [s["source"] for s in result["sources"]])

Turning retrieval into an agent tool

Expose retrieval as a narrow function with a typed input and output. The agent should receive the question, tenant, and optional filters; it should not receive unrestricted database access. Return source identifiers and scores so the model and your UI can cite evidence. Add other tools only when they serve a clear task. Google Cloud’s agent guidance recommends evaluating tools for both functional capability and operational reliability. Too many irrelevant tools can make selection less accurate and increase latency and cost. See Choose your agentic AI architecture components.

Prompt and context design

• Tell the model that retrieved text is evidence, not instructions. This reduces prompt-injection risk from hostile documents.
• Require an explicit “insufficient evidence” response when passages do not support the claim.
• Include source names and stable IDs, then map those IDs to links in your application.
• Limit context size. Retrieve broadly enough for recall, then rerank and trim for precision.
• Keep tool results structured. Separate data fields from free-form text and validate arguments before execution.

Security and multi-tenant controls

Validate external and user-supplied input before it enters prompts or tool arguments. Enforce access control during retrieval, not after generation: a model must never see a passage the caller is not allowed to read. Test malformed, adversarial, and prompt-injection inputs; inspect for cross-tenant leakage and accidental secret disclosure. Add rate limits, audit logs, timeouts, and explicit tool permissions. Re-evaluate after every model, index, prompt, or connector change. These controls follow the layered recommendations in Google Cloud’s generative AI security guidance.

Performance, reliability, and cost

• Latency: cache query embeddings, batch ingestion, keep retrieval indexes warm, and run independent tool calls concurrently when safe.
• Recall: improve parsing and metadata before increasing top-k. Hybrid keyword plus vector search can recover exact identifiers and error codes.
• Reliability: set deadlines for retrieval and model calls, retry only idempotent operations with backoff, and return a partial answer with a clear limitation when a nonessential tool fails.
• Freshness: process updates incrementally, record source timestamps, and remove deleted documents from indexes promptly.
• Cost: measure embedding, storage, retrieval, model, and tool-call costs separately. Large contexts and unnecessary agent steps often dominate model spend.
• Observability: log request IDs, retrieved IDs, scores, filters, tool arguments, latency, token usage, and verdicts without storing secrets.
