How to Add Text to a Screenshot in Microsoft Word

To add text to a screenshot in Microsoft Word, insert the image, place a text box over it, type your annotation, then set the box to No Fill and No Outline. For a short decorative label, use WordArt instead. Group the screenshot and overlay when you need them to move together.

This method keeps the annotation editable inside Word. You can change the wording, font, color, position, and size without editing the original image file.

1. Insert the screenshot into Word

Start with either a screenshot already saved on your computer or a new capture from an open window.

Insert an existing screenshot

Open the Word document and click where the screenshot should appear.
Choose Insert > Pictures.
Select the image file and choose Insert.

You can use PNG, JPEG, or another image format that Word supports. After insertion, click the picture to open the picture-formatting controls.

Capture an open window or screen region

Click the location in the document where you want the capture.
Choose Insert > Screenshot in the Illustrations group.
Select an available open window, or choose Screen Clipping to drag around a specific region.

Word places the selected window or region directly in the document, where you can edit it with the picture tools. Screen Clipping is useful when you need to mark one dialog, button, chart, or other precise area instead of capturing the whole desktop.

2. Put a text box over the screenshot

Choose Insert > Text Box > Draw Text Box.
Move the pointer to the screenshot and drag a rectangle over the area you want to label.
Type your text inside the new box.

Use a text box for instructions, callouts, step numbers, accessibility notes, or any annotation longer than a few words. The box remains an independent Word object, so you can edit the text later.

Another supported workflow is to insert the picture into a New Drawing Canvas, then create the text box on that canvas. A drawing canvas can make several overlays easier to manage when a screenshot has many labels.

3. Make the overlay transparent

A newly inserted text box normally has a fill color and an outline. Remove both so the screenshot remains visible beneath the letters.

Click the edge of the text box so the box itself is selected.
Open the Shape Format tab.
Choose Shape Fill > No Fill.
Choose Shape Outline > No Outline.

Only the text should now appear over the screenshot. If the words are difficult to read, keep the box transparent and improve the text itself: use a heavier font weight, a larger size, a contrasting color, or a subtle text effect. A semi-transparent colored shape behind the letters can also work when the screenshot is visually busy; in that case, set a fill color and adjust its transparency rather than selecting No Fill.

4. Position and format the annotation

Click the text inside the box to select it, then use the Home tab to change the font, size, color, alignment, and emphasis. Use short phrases and place labels close to the screen element they describe.

Move the text box

Click the box border, then drag it. When the pointer changes to the four-headed-arrow handle, you can reposition the entire object without selecting the text. Dragging from inside the text can select words instead of moving the box.

Prevent the image from pushing the overlay away

Pictures inserted with In Line with Text behave like large characters in a paragraph. That layout can make it difficult to place a text box freely. Select the picture, open the layout or wrapping options, and choose a wrapping mode that allows independent positioning, such as Square, Tight, or another floating option available in your Word version. Then move the image and overlay separately as needed.

If the screenshot must stay anchored at a precise location, open Layout Options and review the position and anchor settings. Keep the image and labels in the same paragraph or drawing canvas when you are building a diagram that should not reflow with surrounding text.

Resize without distorting the screenshot

Drag a corner handle to resize the screenshot proportionally. For exact dimensions, select the picture and enter Height and Width on the relevant Format tab. Keep Lock aspect ratio enabled when the original proportions must remain unchanged.

Resize the text box with its handles when you need more room for wrapping. Changing a WordArt object’s container does not necessarily change the letter size; select the text and change its font size separately.

5. Keep the screenshot and text together

Once the annotation is in the right place, group the two objects.

Hold Ctrl on Windows while selecting the screenshot and the text-box border. On Mac, use the platform’s multi-select gesture.
Open Shape Format.
Choose Group Objects > Group.

The image and label now move and resize as one object. Grouping is especially useful when you copy the annotated screenshot to another page, align it with a heading, or change the document’s layout. To edit the label later, select the group and use Group > Ungroup, or enter the group and select the text box if your Word version supports that interaction.

6. Use WordArt for short, stylized labels

WordArt is a good choice for a brief label that needs a decorative treatment, such as “Step 1,” “Click here,” or a highlighted warning.

Choose Insert > WordArt and select a style.
Replace the sample text with your label.
Drag the WordArt object over the screenshot.
Use the Shape Format controls to adjust fill, outline, effects, rotation, and alignment.
Group the WordArt with the picture when the placement is final.

Use a normal text box for longer or plain text. WordArt provides more visual styling but can take longer to keep consistent across several annotations. If WordArt looks too large or too small after you resize its container, select the letters and change the font size directly.

7. Annotate a precise region

There are several ways to point out one exact area of a screenshot:

Use Insert > Screenshot > Screen Clipping before adding the label.
Insert the full image, then use the picture crop controls to remove irrelevant areas.
Add a short text box beside the target and use a line, arrow, or shape to connect the label to the control.
Use several small text boxes instead of one large paragraph when each label refers to a different control.

For a series of numbered steps, keep the same font, size, color, and spacing for every box. Duplicate the first formatted box, replace its text, and move the copy to the next location. This is faster and produces a more consistent page.

8. Troubleshooting common Word problems

Problem	Cause	Fix
The text box has a white rectangle	The shape has a solid fill.	Select the border, then choose Shape Fill > No Fill.
A border remains around the words	The shape outline is enabled.	Choose Shape Outline > No Outline.
The box will not sit over the image	The picture is using an inline paragraph layout.	Select the picture and choose a wrapping option that permits free positioning.
The image moves when you move the label	The objects are independently anchored or the image is reflowing text.	Set a suitable wrapping mode, reposition both objects, and group them.
The label separates when the screenshot moves	The objects were never grouped.	Multi-select the image and box, then choose Group Objects > Group.
Text is hidden behind the screenshot	The image or another shape is in front.	Use the arrange controls to bring the text box to front, or send the image backward.
WordArt looks the wrong size	Only the container was resized.	Select the text and change its font size directly.
The screenshot looks stretched	Height and width were changed independently.	Enable Lock aspect ratio and resize from a corner.
The annotation moves after editing nearby paragraphs	The object is anchored to text that reflowed.	Review Layout Options, anchor placement, and wrapping settings; use a drawing canvas for a fixed composition.

9. Desktop, Mac, and web Word differences

Microsoft documents text boxes for Word for Microsoft 365, Word 2024, Word 2021, Word 2019, and Word 2016 on Windows, web, and Mac. Names and command locations can differ slightly between those versions. The Screenshot and Screen Clipping commands are available in several desktop versions, but the exact capture controls depend on the operating system and Word build.

If you cannot find Screenshot, insert an image captured by your operating system and continue with the text-box method. If grouping or advanced wrapping is unavailable in Word for the web, open the document in the desktop application for full object-formatting controls.

Zoom to 100% and inspect every label for overlap, clipping, and contrast.
Check that text boxes are large enough for translated or accessibility-friendly wording.
Group each screenshot with its annotations before moving sections of the document.
Save an editable DOCX copy before exporting a flattened PDF.
When exporting, verify that labels remain visible and that image compression has not made small text unreadable.

Word objects remain editable until you export or otherwise flatten the document. A PDF is convenient for distribution, while the DOCX preserves the separate screenshot, text boxes, WordArt, and shapes for future changes.

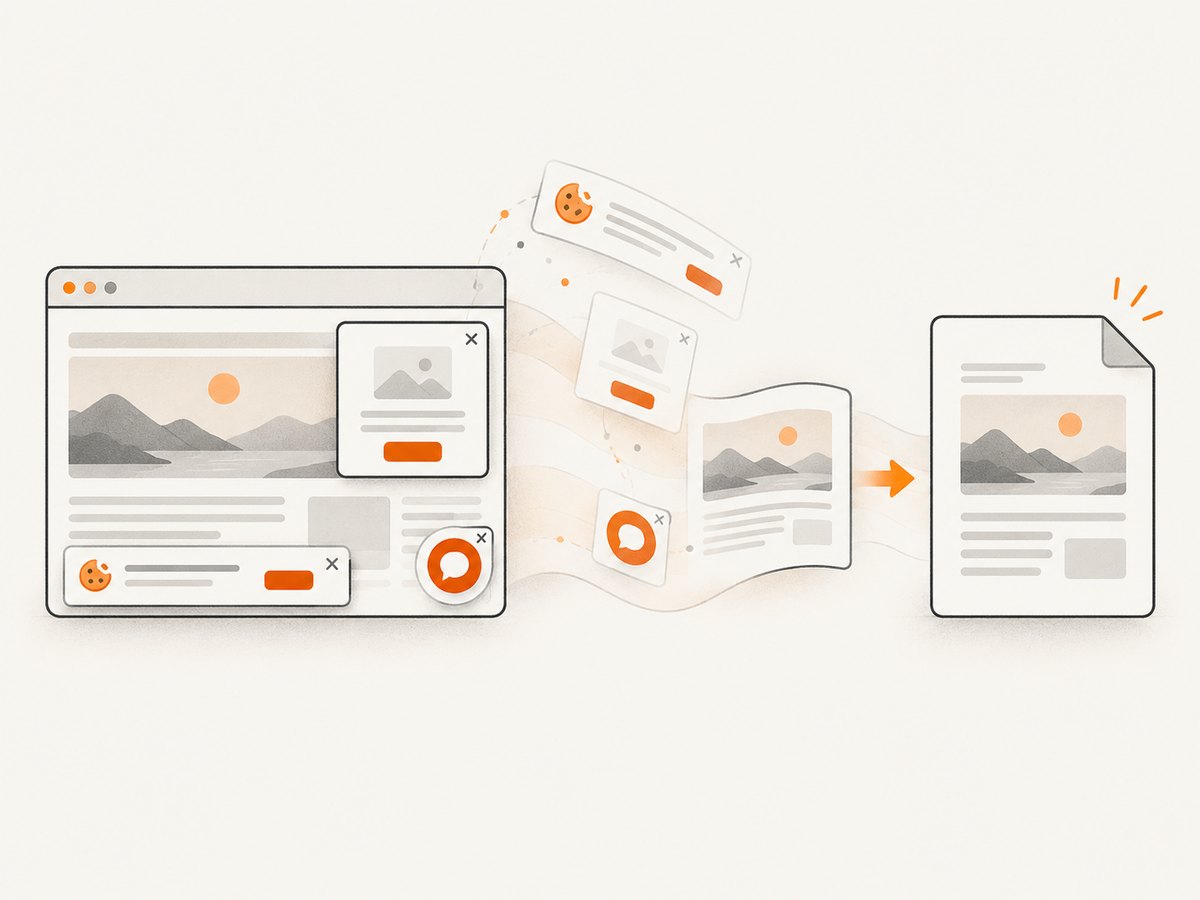

A clean web capture can be inserted into Word before you add editable annotations.

Or skip the browser setup

If your workflow starts with web pages rather than screenshots already on your desktop, ScreenshotNeo can return an image or PDF from one request. You can then insert the result into Word and add the editable text box using the steps above. The API documentation is at screenshotneo.com/docs.

cURL

curl -G "https://api.screenshotneo.com/v1/shot" -d access_key=YOUR_API_KEY --data-urlencode url=https://stripe.com -o shot.webp

Python

import requests
r = requests.get("https://api.screenshotneo.com/v1/shot", params={"access_key": "YOUR_API_KEY", "url": "https://stripe.com"}, timeout=90)
open("shot.webp", "wb").write(r.content)

Node.js

const q = new URLSearchParams({ access_key: 'YOUR_API_KEY', url: 'https://stripe.com' });
const res = await fetch(`https://api.screenshotneo.com/v1/shot?${q}`);

ScreenshotNeo removes cookie and consent banners, newsletter popups, and chat widgets before capture. Bot checks, blank pages, failed loads, timeouts, and cache hits are not billed, and response headers identify the page verdict and billing result. Its MCP server provides take_screenshot, get_page_info, and capture_pdf tools for Claude, Cursor, and other MCP clients. The Free plan includes 1,000 screenshots per month with no card; paid plans start at $5 for 3,000 shots. Create a free ScreenshotNeo account.

11. Performance, reliability, and cost considerations

For a few screenshots, Word’s built-in capture and a text box are the simplest path. For repeated web captures, an API avoids manually opening each page and makes the source URL explicit. Save the original image and the annotated DOCX separately so you can regenerate a page when the website changes.

When capturing pages programmatically, wait for the content you need before taking the shot, use a stable viewport, and keep a record of the target URL and capture date. If you use a cached result, confirm that its freshness meets your documentation requirement. For large batches, process URLs in controlled groups and inspect response status and billing headers before inserting images into Word.

FAQ

How do I type over a picture in Word?

Insert a text box, draw it over the picture, type your words, and set Shape Fill to No Fill and Shape Outline to No Outline.

Can I add text directly to the screenshot file?

Word places the text as an editable object over the image. It does not permanently alter the original image file unless you export or flatten the finished composition.

Should I use a text box or WordArt?

Use a text box for longer, plain, or instructional text. Use WordArt for short labels that need a stylized appearance.

Why does my text move when I resize the image?

The image and overlay are separate objects or the picture is using an inline layout. Choose a floating wrapping option, align the objects, and group them.

Can I annotate a screenshot captured in Word?

Yes. Insert > Screenshot can capture an open window or Screen Clipping can capture a selected region; add the text box afterward.

Keep the editable DOCX, group each image with its labels, and export a PDF only after checking the final layout.
