How to Fix Cypress “Missing X Server or $DISPLAY”

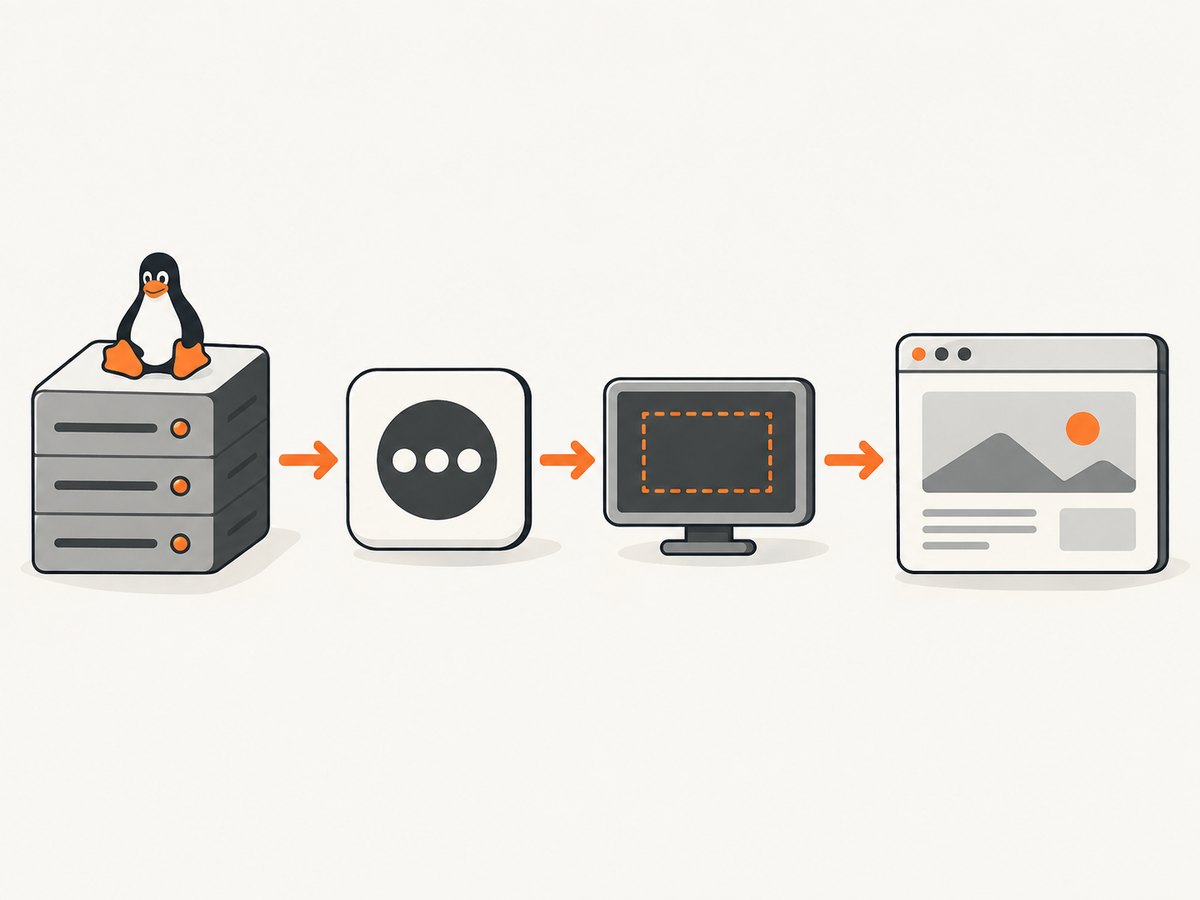

Cypress needs an X11 server on Linux. The CLI normally starts Xvfb for cypress run, but the automatic setup can be unavailable, misconfigured, or conflicting with another process. The documented fallback is to install the packages for your exact Linux release, start Xvfb, export a display such as :99, and run Cypress in that same environment.

cypress open is different: it always launches a headed browser and needs an interactive graphical display. A headless CI job should normally use cypress run. See the Cypress CI documentation and browser-launch documentation.

1. Identify which display problem you have

Before changing configuration, record:

• The command: cypress run or cypress open.
• Operating system and release.
• Cypress version and browser.
• Whether the process runs on a host Linux machine, CI runner, container, WSL or Dev Container.
• The exact error and the current value of DISPLAY.

Run these checks in the same shell or job that launches Cypress:

node --version
npx cypress version
printf 'DISPLAY=%s\n' "${DISPLAY:-<unset>}"
command -v Xvfb || true

2. Install the Linux dependencies for your release

Do not copy one package list to every distribution. Cypress publishes different names for current Ubuntu and Debian releases. The package instructions are in its advanced installation guide.

Ubuntu 22.04 and Debian

sudo apt-get update
sudo apt-get install -y \
  libgtk-3-0 libgbm-dev libnotify-dev libnss3 libxss1 \
  libasound2 libxtst6 xauth xvfb

Ubuntu 24.04 (and the documented Debian 13 variant)

sudo apt-get update
sudo apt-get install -y \
  libgtk-3-0t64 libgbm-dev libnotify-dev libnss3 libxss1 \
  libasound2t64 libxtst6 xauth xvfb

If your distribution is different, use the Cypress list for that release instead of guessing package names. A missing shared library can look like a display startup problem, so keep dependency diagnosis separate from DISPLAY diagnosis.

3. Start Xvfb explicitly in Linux CI

Cypress can start Xvfb automatically, and many CI images work without extra commands. If automatic startup is unavailable or unreliable, use the documented fallback:

set -eu
Xvfb :99 &
XVFB_PID=$!
trap 'kill "$XVFB_PID" 2>/dev/null || true' EXIT
export DISPLAY=:99
npx cypress run

Start Xvfb and run Cypress in the same job or container. The DISPLAY value must point to a live server that the Cypress process can access.

When Chrome or Electron still reports an X11 connection error

Some environments need an explicit 24-bit screen:

set -eu
Xvfb -screen 0 1024x768x24 :99 &
XVFB_PID=$!
trap 'kill "$XVFB_PID" 2>/dev/null || true' EXIT
export DISPLAY=:99
npx cypress run

The screen-depth argument is a documented workaround for environments where Chrome or Electron crashes or cannot connect with the default settings.

4. Handle parallel Cypress processes

Starting several X11 servers at the same time can cause failures for some parallel instances. Start one server, then give every Cypress process the same display:

Xvfb -screen 0 1024x768x24 :99 &
XVFB_PID=$!
trap 'kill "$XVFB_PID" 2>/dev/null || true' EXIT
export DISPLAY=:99

npx cypress run --browser chrome --spec 'cypress/e2e/a.cy.js' &
PID_ONE=$!
npx cypress run --browser chrome --spec 'cypress/e2e/b.cy.js' &
PID_TWO=$!
wait "$PID_ONE" "$PID_TWO"

In a CI matrix with separate machines or containers, each isolated job can have its own display number. Inside one machine, sharing a known Xvfb display avoids races caused by concurrent server creation.

5. Choose the right setup for your environment

Environment	Recommended command or setup	Display requirement
Linux CI	cypress run; use automatic Xvfb or the explicit fallback	Virtual X11 server, usually Xvfb
Interactive Linux debugging	cypress open	Real desktop display or accessible X server
Official Cypress Docker image	Use the image matching your Cypress/browser needs	Prerequisites are included; configure display for headed sessions
Minimal custom container	Install Cypress’s release-specific packages and Xvfb	Required even though cypress run is headless
WSL2	Install Linux dependencies and verify WSLg/display forwarding	Current WSL2 with WSLg includes X11 support; Cypress does not specifically support WSL
Dev Container	Use a documented desktop feature such as desktop-lite for interactive work	Needed for cypress open; support is environment-specific

The official Cypress Docker images include the required Linux prerequisites. Dev Containers and Codespaces have documented setup options, but Cypress does not describe them as universally supported environments.

6. Verify dependencies when the error persists

If Xvfb is running and DISPLAY is correct, check whether Cypress can load all shared libraries. Cypress recommends a smoke test and ldd against the Cypress binary.

npx cypress verify
CYPRESS_BINARY="$(npx cypress cache path)/$(npx cypress cache list | tail -n 1)"
ldd "$CYPRESS_BINARY" | grep 'not found' || true

npx cypress cache path
npx cypress cache list

The exact binary path differs by Cypress version and cache layout, so use the paths printed by the cache commands. Any library reported as not found needs the package that provides it for your distribution.

7. Troubleshooting checklist

Symptom	Likely cause	Fix
Missing X server or $DISPLAY during cypress run	No usable X11 server or DISPLAY is unset	Install xvfb, start Xvfb :99, export DISPLAY=:99, then run Cypress in that shell.
The same message during cypress open	The command is headed and has no graphical session	Run it from a desktop session, connect to an accessible X server, or use cypress run for CI.
Can't open display :99	Xvfb is not running, exited, or is inaccessible	Check ps output and the Xvfb log; start it before Cypress and keep both processes in the same container/user context.
Chrome or Electron crashes after Xvfb starts	Incompatible screen settings	Retry with Xvfb -screen 0 1024x768x24 :99.
Only parallel jobs fail	Several jobs are spawning conflicting X11 servers	Start one shared Xvfb server and pass its display to each Cypress process.
ldd prints not found	A Linux shared library is missing	Install the package from Cypress’s release-specific dependency list, then rerun verification.
Container reports binary_state.json or permission errors	Separate non-root Cypress cache or binary permission issue	Fix writable cache ownership/permissions or follow the container image’s documented verification option. This is not an X11 error.
WSL window never appears	WSLg/X11 integration is unavailable or not forwarded	Verify the WSL2 installation and WSLg/display integration before changing Cypress settings.

8. CI reliability and performance

• Prefer cypress run in CI because it is headless by default and does not require a physical monitor.
• Pin the Cypress Docker image or Linux base image when reproducibility matters, and keep the package list aligned with the image’s distribution release.
• Start one Xvfb process per isolated job, or one shared process per machine when running multiple Cypress instances.
• Clean up Xvfb with a shell trap so failed tests do not leave stale servers for later jobs.
• Use a fixed screen size and color depth when browser rendering must be consistent across runners.
• Cache Cypress’s verified binary according to your CI provider’s cache rules, but ensure the cache is writable by the user running Cypress.

Xvfb itself is lightweight, but startup failures and repeated dependency installation add more time than the display server. The biggest reliability gains come from using a matching prebuilt Cypress image, validating dependencies once, and making the display lifecycle explicit in the job.

9. Or skip the browser setup

If your goal is to capture a webpage rather than run a Cypress test, ScreenshotNeo provides a hosted screenshot API. It accepts one GET request and returns PNG, JPEG, WebP or PDF, so your process does not need to install Cypress, Chrome or Xvfb.

See the ScreenshotNeo API documentation for all options.

cURL

curl -G "https://api.screenshotneo.com/v1/shot" -d access_key=YOUR_API_KEY --data-urlencode url=https://stripe.com -o shot.webp

Python

import requests
r = requests.get("https://api.screenshotneo.com/v1/shot", params={"access_key": "YOUR_API_KEY", "url": "https://stripe.com"}, timeout=90)
open("shot.webp", "wb").write(r.content)

Node.js

const q = new URLSearchParams({ access_key: 'YOUR_API_KEY', url: 'https://stripe.com' });
const res = await fetch(`https://api.screenshotneo.com/v1/shot?${q}`);

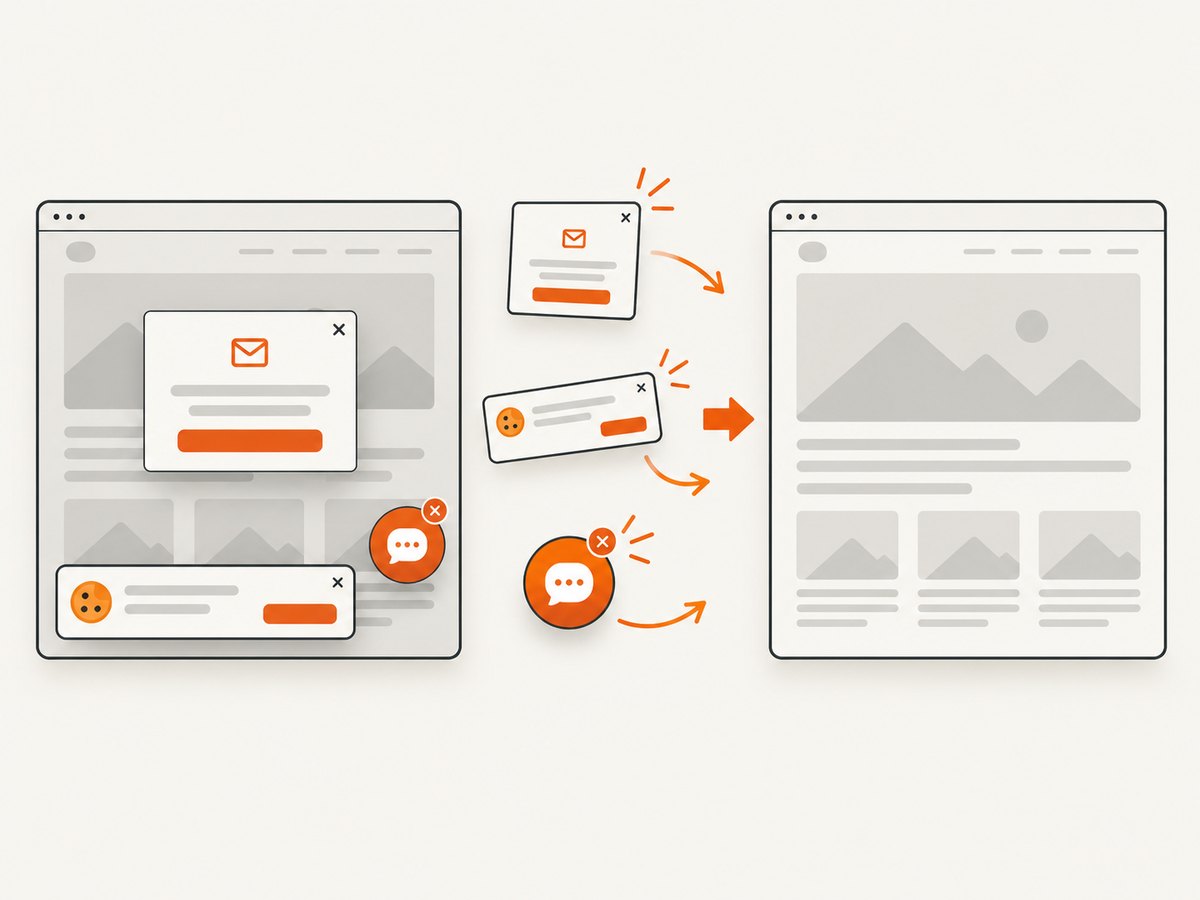

ScreenshotNeo removes cookie and consent banners, newsletter popups and chat widgets before capture. Bot checks, blank pages, timeouts, failed loads and cache hits are not billed, and response headers report the page verdict and billing status. Its MCP server provides take_screenshot, get_page_info and capture_pdf for Claude, Cursor and other MCP clients. The Free plan includes 1,000 screenshots per month with no card; paid plans start at $5 for 3,000.

Create a free ScreenshotNeo account to start with 1,000 screenshots per month and no card.

10. FAQ

Does headless mean Cypress needs no display?

No. cypress run is headless, but Linux browser dependencies and an X11 server may still be required. Cypress normally manages Xvfb for the run.

Should I always export DISPLAY=:99?

No. Export it when you start a separate Xvfb server and need Cypress to use that server. If Cypress’s automatic startup works, an extra display setting can be unnecessary or point to the wrong server.

Can I fix this by attaching a monitor to the CI machine?

Usually no. The documented solution is a usable X11 server such as Xvfb, plus the required Linux packages.

Why does only one browser fail?

Different browsers can require different shared libraries or display settings. Check the browser-specific log, then run Cypress verification and ldd checks to separate dependency failures from X11 failures.

Is a Cypress Cloud account required?

No. Cypress Cloud can add CI workflow features, but it does not provide the missing X server. Fix the runner’s display and dependency setup first.
