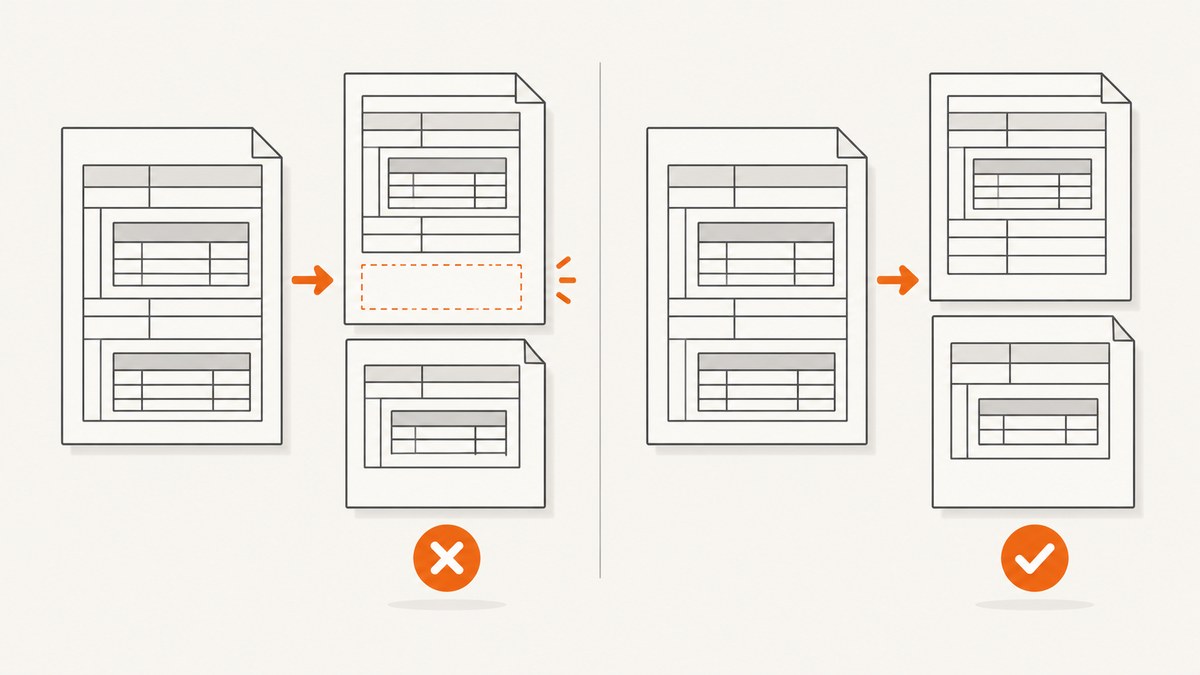

How to Fix Blank Spaces Around Nested Tables in wkhtmltopdf PDFs

Short answer: blank space around a nested table usually appears when wkhtmltopdf’s WebKit pagination moves a table row or cell to the next printable page. Reproduce the gap with the smallest possible HTML, record your wkhtmltopdf build and page settings, then test page-break-inside: auto, a less nested structure, and a different renderer. These are experiments rather than guaranteed fixes: wkhtmltopdf documents that its pagination algorithm has limitations, and reports show that nested tables can still move as a unit even when CSS permits breaks.

wkhtmltopdf first lays out a long WebKit page and then cuts it into paper-sized pages. The project documentation warns that lines and images can be split and says patched Qt’s page-break-inside support only helps partially. See the Debian wkhtmltopdf manpage for the documented pagination behavior.

1. Confirm that pagination is the cause

Do not start by adding random page-break rules. First determine whether the blank area is produced at a printable boundary.

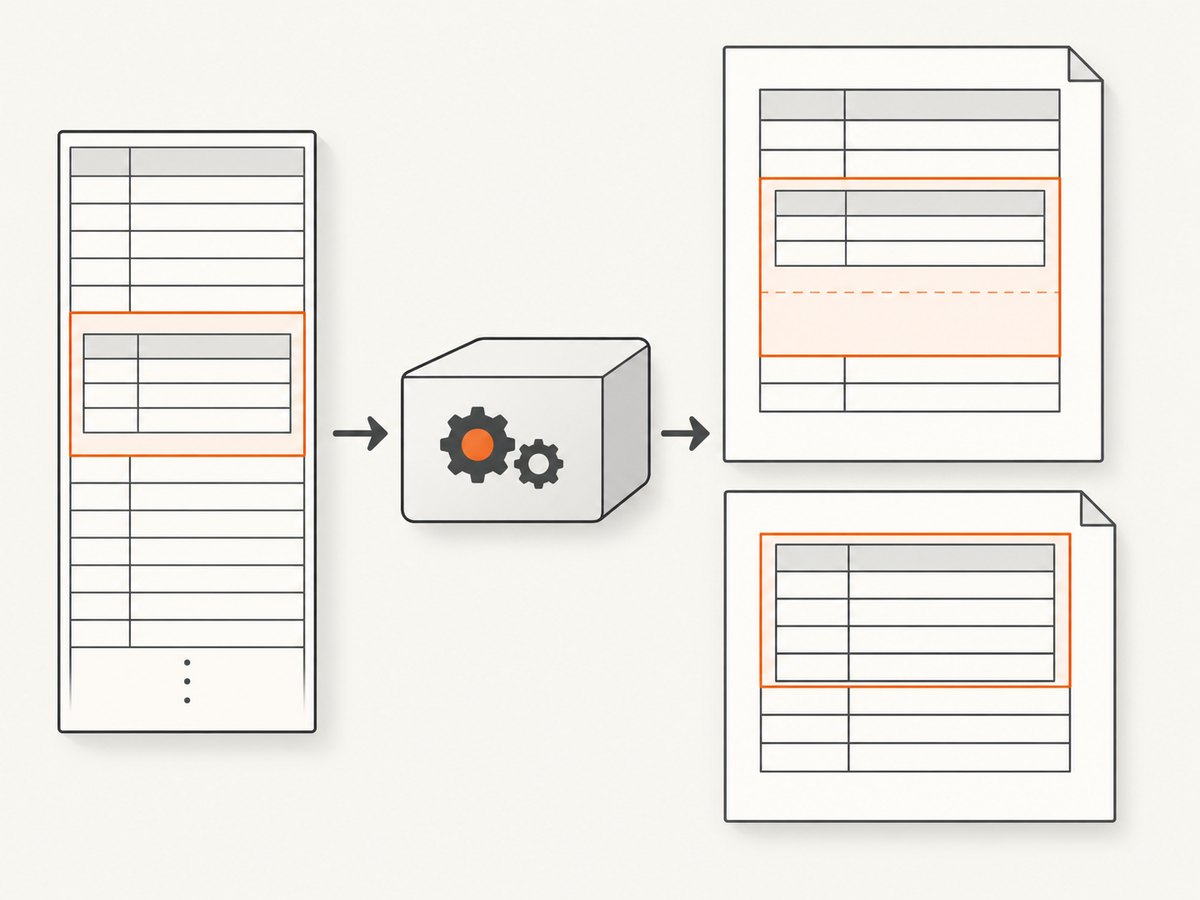

A parent cell can cross the printable boundary and push a nested table to the following page.

Save the exact executable version with wkhtmltopdf --version.
Record the operating system, paper size, orientation, margins, zoom or DPI settings, and whether the binary uses patched Qt.
Open the source HTML in a browser and compare it with the PDF. A browser view does not prove that wkhtmltopdf will paginate the same way.
Check which outer <tr> and <td> contain the nested table. Content before the inner table may consume the remaining printable height.
Make a minimal reproduction by removing framework CSS, unrelated images, scripts, fonts, and extra rows.

One reported case moved a nested table to the next page when the parent cell crossed the printable boundary, even though the inner table could not fill an entire page. Another report found that page-break-inside: auto worked for ordinary tables but not for a nested table inside a <td>. These are individual issue reports, not guarantees about every document. See issue #3806 and issue #4558.

2. Build a minimal nested-table reproduction

Use a deliberately long cell so the page boundary is easy to move. This file is complete and can be rendered directly.

<!doctype html>
<html>
<head>
  <meta charset='utf-8'>
  <style>
    @page { size: A4; margin: 18mm; }
    body { font: 12px/1.45 Arial, sans-serif; margin: 0; }
    table { width: 100%; border-collapse: collapse; }
    td, th { border: 1px solid #777; padding: 6px; vertical-align: top; }
    .outer { page-break-inside: auto; }
    .inner { page-break-inside: auto; }
    .line { height: 18px; }
  </style>
</head>
<body>
  <h1>Nested table pagination test</h1>
  <table class='outer'>
    <tr>
      <td>
        <p>Text before the nested table consumes part of the page.</p>
        <table class='inner'>
          <tr><th>Item</th><th>Description</th></tr>
          <tr><td>1</td><td>
            <div class='line'>Long content line</div>
            <div class='line'>Long content line</div>
            <div class='line'>Long content line</div>
            <div class='line'>Long content line</div>
            <div class='line'>Long content line</div>
            <div class='line'>Long content line</div>
            <div class='line'>Long content line</div>
            <div class='line'>Long content line</div>
          </td></tr>
        </table>
      </td>
    </tr>
  </table>
</body>
</html>

wkhtmltopdf --version
wkhtmltopdf --page-size A4 --margin-top 18mm --margin-right 18mm --margin-bottom 18mm --margin-left 18mm repro.html repro.pdf

Change one variable at a time. If removing the paragraph before the inner table removes the gap, the outer cell was crossing the printable boundary. If the gap remains with one simple row, the nested-table structure or renderer build is a stronger suspect.

3. Test CSS pagination rules carefully

Allow content to split

When a long nested table should continue on the next page, test page-break-inside: auto on the table and the containers that wrap it:

table,
tr,
td,
.outer,
.inner {
  page-break-inside: auto;
}

Keep the rule limited to the relevant subtree while diagnosing. A broad rule can make unrelated rows split in undesirable places.

Keep a short row together

If the intended behavior is to keep a small row intact, test page-break-inside: avoid on that row:

.inner tr.keep-together {
  page-break-inside: avoid;
}

Do not put avoid on a large parent table or cell containing many pages of content. If the block cannot fit in the remaining space, wkhtmltopdf may move the entire block and create an even larger blank region. The manpage describes this support as partial, and nested-table reports show that the rule may not be honored in every structure.

Use legacy and modern names together when testing

For a controlled experiment, include both names. This does not make the renderer fully standards-compliant, but it helps distinguish a missing alias from a deeper pagination limitation.

.candidate {
  page-break-inside: auto;
  break-inside: auto;
}

.keep-small {
  page-break-inside: avoid;
  break-inside: avoid;
}

4. Simplify the HTML when CSS is not enough

Nested tables are a common trigger because the renderer must decide whether the outer row, the parent cell, or the inner rows can cross the boundary. Try these structural experiments:

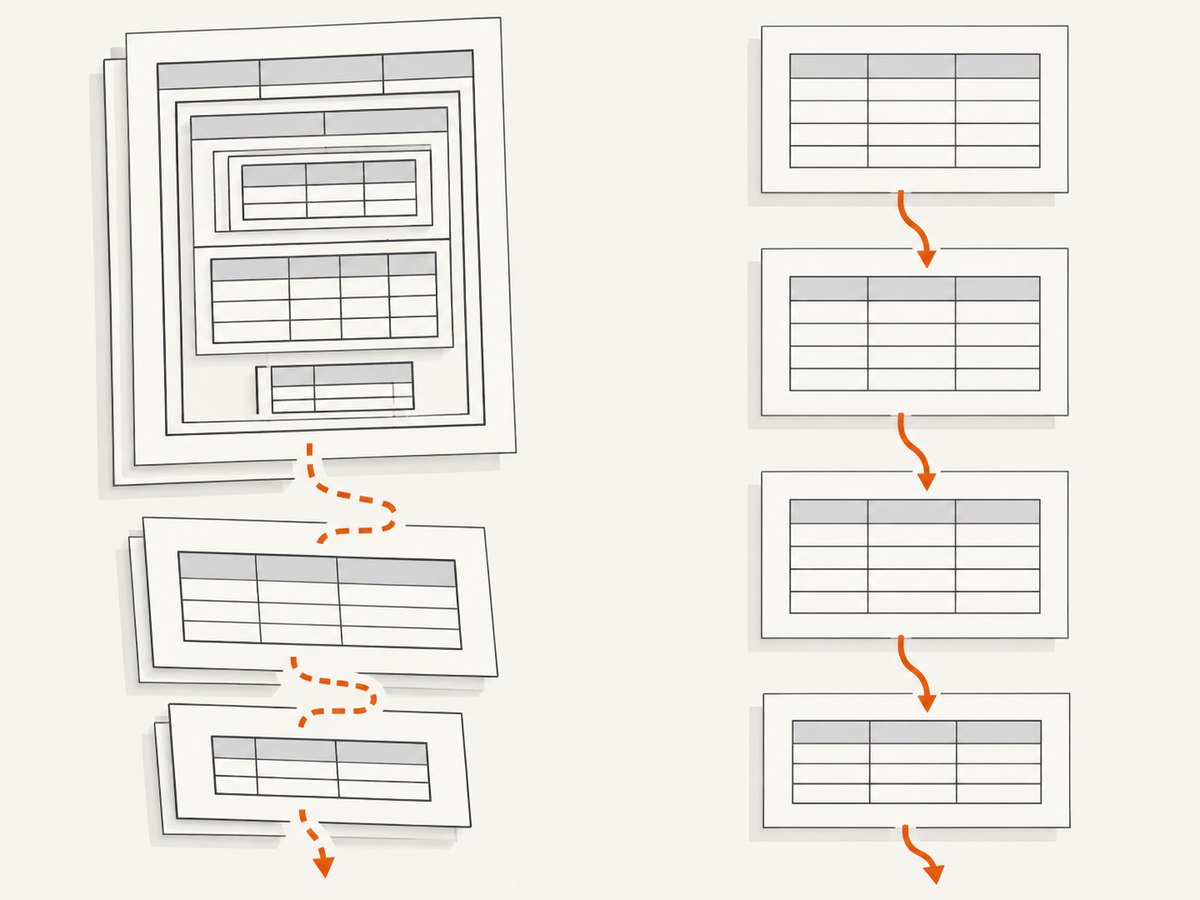

Simplifying the table structure removes pagination boundaries that CSS may not control.

Move the inner table outside the outer table and place both as independent blocks.
Replace a layout table with normal block elements and a single data table.
Split one large parent table into smaller tables at logical sections.
Move long prose out of a cell that also contains the nested table.
Reduce deep nesting: outer table, cell, inner table, and additional wrappers each add another pagination boundary.
Give every table an explicit width and use border-collapse: collapse to avoid width expansion that changes row height.

These changes can alter column widths and styling, so compare the PDF output against a visual reference. They are ways to remove the trigger, not universal fixes.

5. Check page geometry and wkhtmltopdf settings

A gap can be made more visible by page geometry even when the HTML is unchanged. Capture the complete command line used in production and compare it with your reproduction.

Setting	What to check	Why it matters
Paper size	`--page-size` or custom dimensions	Changes the printable height available to the parent row.
Orientation	`--orientation Portrait` or `Landscape`	Changes both available width and height.
Margins	`--margin-top`, `--margin-bottom`, and side margins	Larger margins leave less room before a row reaches the boundary.
Zoom or DPI	Any production scaling flags	Scaling changes measured content height and can move the break.
Print CSS	Styles loaded under `@media print`	Print-only rules may add padding, widths, or hidden content.
Qt build	Whether the executable uses patched Qt	The documented CSS pagination features differ between builds.

Run a baseline with explicit geometry so comparisons are repeatable:

wkhtmltopdf \
  --page-size A4 \
  --orientation Portrait \
  --margin-top 18mm \
  --margin-right 18mm \
  --margin-bottom 18mm \
  --margin-left 18mm \
  --print-media-type \
  input.html output.pdf

If --print-media-type changes the result, inspect your print stylesheet for table display rules, padding, fixed heights, and hidden elements. Keep the option only if it matches the intended production output.

6. Troubleshooting common symptoms

Symptom	Likely cause	Fix to try
Inner table starts on the next page with a large gap above it	Parent cell or row crossed the printable boundary.	Remove preceding content, test `page-break-inside: auto`, then simplify the nesting.
`page-break-inside: auto` works on a top-level table but not inside a cell	Nested row or cell pagination is not honored by this WebKit build.	Reproduce with a minimal file and try moving the inner table outside the parent table.
`avoid` creates a larger blank area	The protected block is taller than the remaining page.	Apply `avoid` only to short rows; allow long content to split.
Only production output has the gap	Different binary, Qt patch level, OS, margins, fonts, or print CSS.	Record and compare the complete command, executable version, OS, and input assets.
Changing CSS has no effect	The stylesheet is not loaded, is overridden, or the issue is structural.	Inline the test rule, remove framework CSS, and inspect the minimal reproduction.
Rows split in unexpected places	Allowing breaks globally affects every table.	Scope `auto` to the nested region and add `avoid` only to short rows.
PDF differs after an upgrade or host migration	Renderer builds can paginate differently.	Pin and record the binary, then rerun the same fixture on both environments.

7. Make the diagnosis reproducible

Keep a fixture directory containing:

the smallest HTML file that still shows the gap;
all CSS used by that file;
the exact wkhtmltopdf command;
the output PDF and a page number showing the blank region;
the executable version, OS and version, paper size, orientation, margins, and Qt build details.

When reporting a suspected bug, include a detailed description and a duplicating HTML/CSS/JS case. The project’s reporting guidance asks for those environment details. The upstream repository is archived and read-only, so do not plan on an imminent upstream pagination fix; treat a renderer change as a real migration decision.

8. Choose between CSS, restructuring, and another renderer

Approach	Best when	Trade-offs
Keep wkhtmltopdf and adjust CSS	The template is stable and the gap occurs in a small region.	Lowest migration effort, but nested-table pagination remains uncertain.
Restructure HTML	You control the template and can remove the nested boundary.	Often removes the trigger, but may require layout and styling changes.
Use another renderer	Pagination is a hard requirement across many templates.	May improve a given document, but measure your real templates and account for compatibility and migration cost.

One issue author reported that Chrome produced the expected pagination for their sample. That observation is anecdotal and does not establish that Chrome will match your documents; render representative fixtures before migrating. See issue #4558.

9. Performance, reliability, and cost considerations

Performance: a smaller DOM and fewer nested wrappers reduce layout work and make failures easier to reproduce. Avoid loading unrelated images and scripts in the diagnostic fixture.
Reliability: pin the wkhtmltopdf executable and its Qt build, keep page geometry explicit, and compare PDFs from a fixed fixture after every template or host change.
Output risk: CSS pagination hints are advisory in this renderer. A visually correct result on one page size or operating system can change when margins, fonts, or content length changes.
Migration cost: another renderer may solve a specific boundary case but can change CSS support, fonts, JavaScript behavior, and output fidelity. Use a representative document set rather than one successful sample.
