How to Fix Selenium Screenshots That Show a Black Overlay

A Selenium screenshot with a black overlay is usually a symptom to isolate, not a problem with one universal switch. First determine whether the dark layer is rendered by the page or appears only in the saved image. Then compare headed and headless runs, fix the capture timing, hold the viewport constant, and narrow the screenshot scope.

Selenium can capture the current browsing context and individual elements. Firefox also exposes full-document screenshot methods. Selenium’s window and screenshot documentation and the Firefox WebDriver API describe these controls.

1. Confirm what is actually black

Before changing Chrome flags, inspect the page while the automated browser is paused at the capture point.

1. Save the failing screenshot and record its dimensions.
2. Take a second screenshot immediately after stopping the test or open the same URL manually.
3. Check whether the live page contains a modal, loading layer, consent dialog, application dimmer, or test fixture.
4. If the live page is clear but the file is dark, compare capture mode, timing, viewport, and browser versions.

A page-owned overlay must be closed or waited out in the application. A dark saved image with a clear live page requires an environment or capture investigation.

2. Reproduce with a controlled Selenium test

The following Python example fixes the viewport, waits for a target condition, captures both the page and an element, and logs the browser dimensions. Install Selenium with pip install selenium; Selenium Manager can obtain a compatible driver for current installations.

from pathlib import Path
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
from selenium.webdriver.common.by import By
from selenium.webdriver.support.ui import WebDriverWait
from selenium.webdriver.support import expected_conditions as EC

URL = "https://example.com"
OUT = Path("artifacts")
OUT.mkdir(exist_ok=True)

options = Options()
# Remove this line for the headed comparison.
options.add_argument("--headless")
options.add_argument("--window-size=1440,1000")

with webdriver.Chrome(options=options) as driver:
    driver.get(URL)
    wait = WebDriverWait(driver, 30)

    # Replace this with the condition that means your UI is ready.
    wait.until(EC.visibility_of_element_located((By.TAG_NAME, "body")))

    print("window:", driver.get_window_size())
    print("viewport:", driver.execute_script(
        "return {width: innerWidth, height: innerHeight, dpr: devicePixelRatio};"
    ))

    driver.save_screenshot(str(OUT / "whole-page.png"))
    element = wait.until(EC.visibility_of_element_located((By.TAG_NAME, "h1")))
    element.screenshot(str(OUT / "element.png"))

Run the same script once without --headless. Keep the Chrome build, driver, URL, viewport, application state, and wait condition unchanged. A difference between the two files narrows the failing path; it does not by itself prove a GPU, compositor, or Selenium defect.

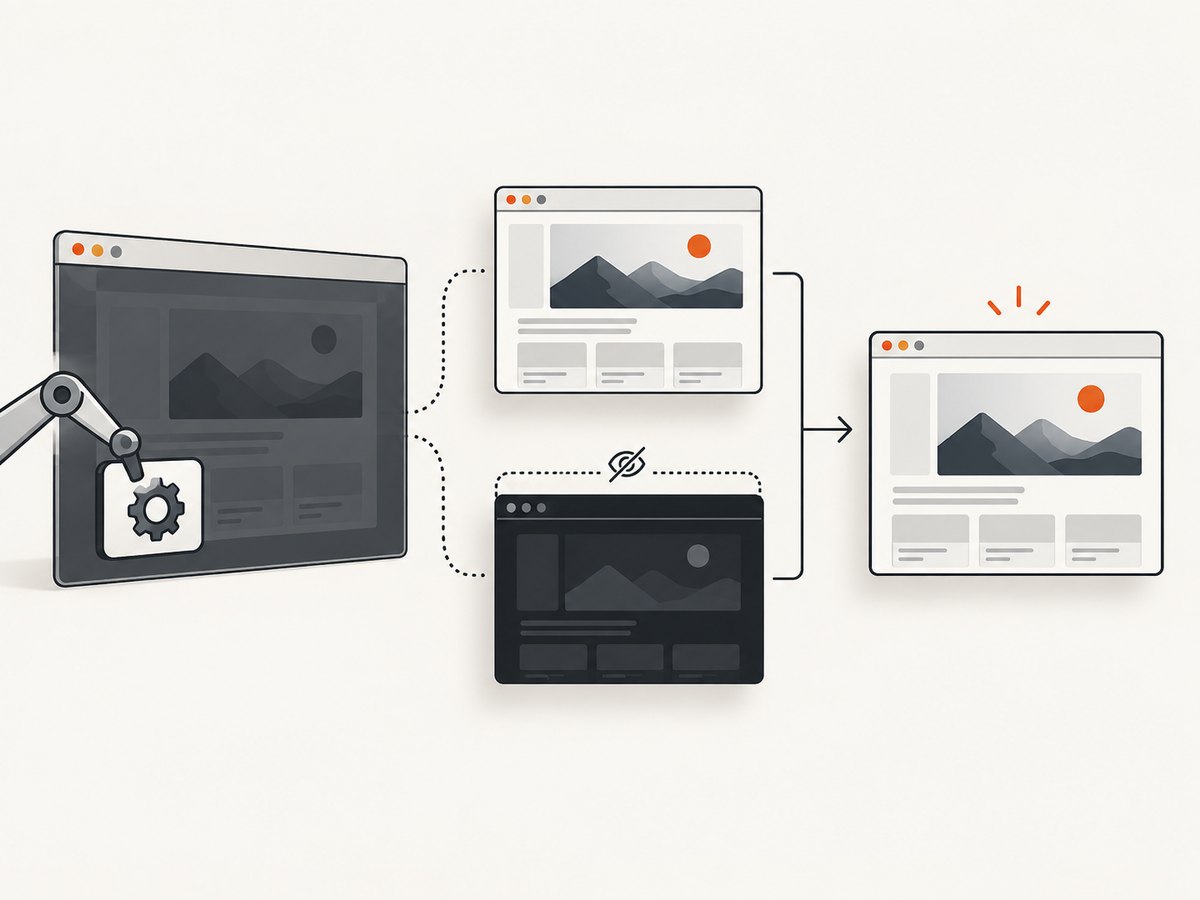

3. Compare headed and headless Chrome correctly

Chrome Headless runs without visible browser UI and shares Chrome’s browser code. The current guidance is in Chrome Headless mode. Chrome’s implementation changed in version 112, and from Chrome 132.0.6793.0 the old Headless mode is distributed as the standalone chrome-headless-shell binary.

Use Selenium’s current --headless option after checking the deployed browser version. Do not copy old --headless=old or --headless=new recipes as universal fixes. Record these values for both runs:

• Chrome version and driver version
• Selenium binding version
• Operating system or container image
• Headed or headless mode
• Window size, inner viewport, and device-pixel ratio
• URL, authentication state, and capture timestamp

4. Stabilize viewport and window behavior

Window dimensions change responsive layouts, modal placement, lazy-loading thresholds, and the size of application overlays. Set a known size before navigation or capture and log the effective size.

driver.set_window_size(1440, 1000)
print(driver.get_window_size())
print(driver.execute_script("return [innerWidth, innerHeight, devicePixelRatio]"))

You can also use driver.maximize_window() for a headed comparison, but a fixed size is easier to reproduce in CI. Compare one viewport at a time; changing browser, mode, and dimensions together hides the cause.

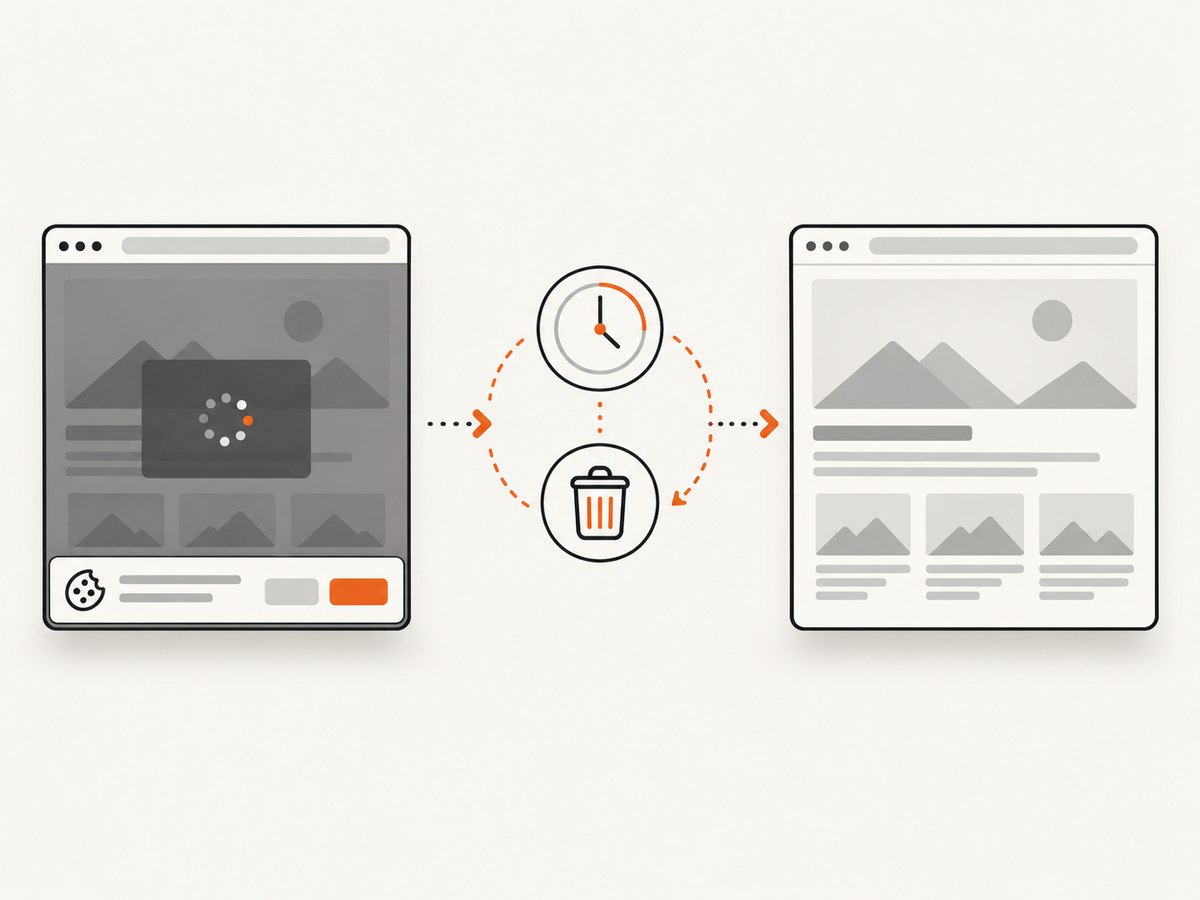

5. Wait for the real visual state

Navigation completion does not guarantee that an application has finished rendering. Chrome’s command-line screenshot workflow captures content as soon as page load completes unless a timeout or virtual-time budget is supplied. In Selenium, wait for the condition that should be visible in the image.

from selenium.webdriver.support import expected_conditions as EC

wait.until(EC.visibility_of_element_located((By.CSS_SELECTOR, "main.dashboard")))
wait.until(EC.invisibility_of_element_located((By.CSS_SELECTOR, ".loading-overlay")))
# If the application exposes a readiness flag:
wait.until(lambda d: d.execute_script("return window.appReady === true"))
driver.save_screenshot("ready.png")

Prefer a selector, state flag, or disappearance condition over an arbitrary long sleep. If the page has animations, wait for the final class or state used by the application. A short diagnostic delay can confirm a timing race, but it should not be the permanent fix.

6. Narrow the screenshot scope

Capture the whole browsing context and the affected element. Selenium documents both forms. If only the full-window image is dark, inspect page-wide UI and window rendering. If the element image is also dark, inspect the element’s content and ancestors.

# Whole current browsing context
driver.save_screenshot("window.png")

# One element
panel = driver.find_element(By.CSS_SELECTOR, "main.dashboard")
panel.screenshot("panel.png")

Firefox has browser-specific full-document APIs. When comparing Chrome and Firefox, treat a difference as evidence of a browser-specific path, not proof of the root cause.

7. Check page-owned overlays

If the dark layer is visible in the live page, inspect application state before browser flags.

• Close a modal only through the same user-visible control a real visitor would use.
• Wait for consent or loading layers to become invisible.
• Check whether a test fixture intentionally adds a full-screen backdrop.
• Inspect ancestors for fixed-position elements, high z-index, opacity, or a blend mode.
• Verify that a failed API request has not left the application in a blocking state.

overlay = driver.find_element(By.CSS_SELECTOR, ".loading-overlay")
print("display:", overlay.value_of_css_property("display"))
print("opacity:", overlay.value_of_css_property("opacity"))
print("z-index:", overlay.value_of_css_property("z-index"))

Do not hide arbitrary elements until you know they are the cause; doing so can conceal a real application failure.

8. Use a one-variable diagnostic matrix

Run	Browser mode	Scope	Timing	What it tells you
A	Headed	Whole page	Target condition	Baseline with visible UI
B	Headless	Whole page	Target condition	Mode difference
C	Headless	Element	Target condition	Page-wide versus element scope
D	Headless	Whole page	Immediate	Timing sensitivity
E	Headless	Whole page	Target condition	Different fixed viewport

Keep the Chrome and driver versions constant while changing one axis. Reproduce with a minimal page before changing graphics flags or downgrading software.

9. Troubleshooting common errors

Symptom	Likely area	Fix
Only headless is black	Mode or environment difference	Compare current Chrome versions, fixed viewport, and identical waits; use current Headless guidance.
Both whole-page and element images are black	Page state or ancestor overlay	Inspect the live page, element ancestors, modal state, and application logs.
Whole page is black but element is clear	Page-wide layer or window capture	Inspect fixed overlays and compare a different viewport; keep the element capture as evidence.
Screenshot is taken before content appears	Readiness condition	Wait for the target selector, network-driven state, or loading layer to disappear.
Layout changes between runs	Viewport mismatch	Set and log a fixed window size and inner viewport.
Element is not interactable	Overlay still covers target	Wait for overlay invisibility or close it through the application’s control.
SessionNotCreatedException	Browser and driver mismatch	Record versions and install a compatible driver or let Selenium Manager resolve it.
Blank or partial image in CI	Navigation, resource, or container issue	Save console/browser logs, verify URL access, and reproduce with a minimal page.

10. Make failures reproducible

Attach the failing image and a short report containing the Selenium binding and version, browser and driver versions, operating system or container image, headed/headless mode, viewport dimensions, URL or minimal page, whether the overlay appears live, whether whole-page and element captures differ, and available console or browser logs. This turns a visual complaint into a testable browser-state comparison.

11. Performance, reliability, and cost notes

• Use one browser session for related captures when isolation is not required; startup is usually more expensive than another screenshot in the same session.
• Wait on precise conditions to avoid both premature images and unnecessary idle time.
• Keep viewport and browser versions pinned in CI so visual diffs represent application changes.
• Capture an element when full-page output is unnecessary; it reduces files and simplifies diagnosis.
• Save diagnostics only on failure in large test suites, while retaining browser and driver version metadata.
• There is no universal black-overlay frequency or single flag supported by the references; measure your own failure rate after isolating the variable.
