How to Render SVG ForeignObject Elements with Rotativa

Direct answer: Rotativa delegates rendering to wkhtmltopdf for PDFs and wkhtmltoimage for images. Those older WebKit-based renderers can omit or misplace content inside SVG <foreignObject>, even when Chrome displays it correctly. Start with a minimal reproduction rendered by the exact binary used in production, then test removing requiredExtensions from foreignObject. Keep the attribute if it is required by your markup or the change does not help; the workaround comes from a single community report, not an official compatibility guarantee.

Rotativa is an ASP.NET MVC helper around external wkhtmltopdf tools. The Rotativa.AspNetCore README states that “Rotativa uses wkhtmltopdf/wkhtmltoimage behind the scenes.” Therefore, browser output is only a reference: the PDF or image produced by your deployed executable is the result that matters.

1. Build a minimal foreignObject test

Reduce the problem to one SVG, one foreignObject, and one line of XHTML. Preserve your original attribute first so you have a baseline.

Browser previews and Rotativa output can differ because they use different rendering engines.

<!doctype html>
<html>
<head>
  <meta charset="utf-8">
  <style>
    body { margin: 0; font-family: Arial, sans-serif; }
    .canvas { width: 800px; height: 400px; }
    .label { color: #111; font-size: 28px; font-weight: 700; }
  </style>
</head>
<body>
  <svg class="canvas" xmlns="http://www.w3.org/2000/svg"
       xmlns:xhtml="http://www.w3.org/1999/xhtml"
       viewBox="0 0 800 400">
    <rect width="800" height="400" fill="#e8eef7"/>
    <foreignObject x="40" y="40" width="720" height="120"
                     requiredExtensions="http://www.w3.org/1999/xhtml">
      <xhtml:div class="label">Text inside foreignObject</xhtml:div>
    </foreignObject>
  </svg>
</body>
</html>

Save this as foreign-object.html. Render it with the same operating system, executable path, and version configured for Rotativa. Record the command output and the generated artifact.

wkhtmltopdf --version
wkhtmltopdf foreign-object.html foreign-object.pdf
wkhtmltoimage --version
wkhtmltoimage foreign-object.html foreign-object.png

If the minimal file fails, the issue is in renderer support or deployment rather than your application view. If it succeeds, add your real SVG elements back one at a time.

2. Configure Rotativa with the correct renderer

Rotativa must be able to execute its wkhtmltopdf binary. The ASP.NET Core project documents placing wkhtmltopdf.exe where the web application process can access it, commonly in a Rotativa folder. Verify the package and runtime versions in your application against the current project documentation; the README lists .NET Core 3.1 and .NET 5, 6, 7, and 8 compatibility, but your deployed package may differ.

// Program.cs (ASP.NET Core example)
using Rotativa.AspNetCore;

var builder = WebApplication.CreateBuilder(args);
builder.Services.AddControllersWithViews();

var app = builder.Build();
app.UseStaticFiles();
app.MapDefaultControllerRoute();

// The folder must contain the wkhtmltopdf executable used by this deployment.
RotativaConfiguration.Setup(app.Environment.WebRootPath, "Rotativa");

app.Run();

Keep the executable path explicit in deployment documentation. A developer machine may use one binary while a Windows service, Linux container, or IIS worker uses another. Capture the version during deployment so a later renderer upgrade can be correlated with output changes.

3. Test the requiredExtensions workaround

A January 2015 Stack Overflow report describes SVG content appearing in a Rotativa PDF while the content inside foreignObject was missing. The accepted answer suggests removing requiredExtensions. Apply that change to the minimal file and render again:

<foreignObject x="40" y="40" width="720" height="120">
  <xhtml:div class="label">Text inside foreignObject</xhtml:div>
</foreignObject>

Compare the two PDF or image files, not only a browser preview. If removing the attribute fixes the output, make the change in the smallest possible scope and add a regression fixture containing the exact SVG that matters to your application. If it does not fix the output, restore the original markup and continue with the isolation steps below.

4. Use XHTML markup inside foreignObject

When embedding HTML content, declare the XHTML namespace and use an XHTML-prefixed element. The wkhtmltopdf issue example includes xmlns="http://www.w3.org/1999/xhtml" on the embedded div; treat this as markup guidance to test, not a proven universal fix.

<svg xmlns="http://www.w3.org/2000/svg"
     xmlns:xhtml="http://www.w3.org/1999/xhtml"
     viewBox="0 0 600 300">
  <foreignObject x="20" y="20" width="560" height="200">
    <xhtml:div xmlns="http://www.w3.org/1999/xhtml"
               style="font: 20px Arial; color: #222;">
      XHTML content for the renderer to process.
    </xhtml:div>
  </foreignObject>
</svg>

5. Add elements back in a controlled order

One wkhtmltopdf report describes labels in foreignObject stacking or changing position when the order of SVG elements changes. The issue is marked “NeedInfo” and has no confirmed general resolution. Treat element order as a diagnostic variable:

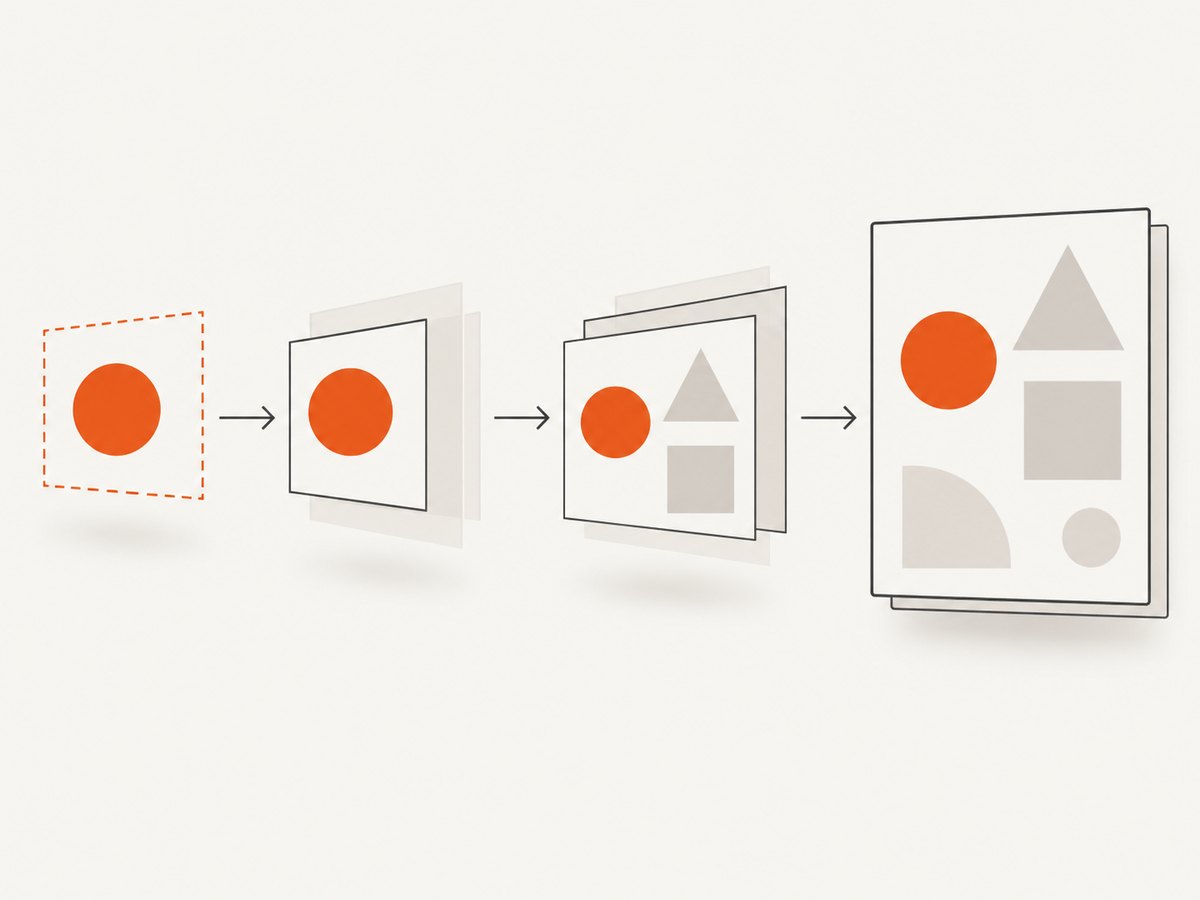

A minimal fixture makes renderer and element-order problems easier to isolate.

Render one foreignObject with one child.
Add the neighboring rect, path, and text nodes one at a time.
Swap the order of adjacent SVG elements and render each version.
Record the smallest change that causes disappearance or movement.

Do not assume that a particular order is a permanent fix. Keep the reduced sample and the renderer version with your bug report or regression test.

6. Check dimensions, clipping, and CSS

A separate wkhtmltopdf report from Windows 10 with version 0.12.6 describes missing text in SVG foreignObject output even though Chrome displayed it. The reporter observed that changing SVG height changed the result. This is environment-specific evidence, not a universal height rule.

Give the root SVG an explicit width, height, and viewBox.
Give each foreignObject an explicit x, y, width, and height.
Temporarily remove overflow:hidden, transforms, filters, and percentage dimensions.
Use simple fonts and inline styles while isolating the failure.
Check that the XHTML content is not outside the viewport or clipped by a parent.
Compare a PDF and a PNG render if your application uses both output paths.

7. Render from a Rotativa controller action

Once the minimal sample works, put the same markup in a view and return a Rotativa result. The exact result class and constructor vary by Rotativa package version, so follow the package API used by your project.

using Microsoft.AspNetCore.Mvc;
using Rotativa.AspNetCore;

public class ReportsController : Controller
{
    public IActionResult SvgReport()
    {
        return new ViewAsPdf("SvgReport")
        {
            FileName = "svg-report.pdf",
            PageSize = Rotativa.AspNetCore.Options.Size.A4,
            PageOrientation = Rotativa.AspNetCore.Options.Orientation.Portrait
        };
    }
}

Keep the SVG fixture in the view or generated HTML identical during diagnosis. Dynamic data, external stylesheets, fonts, JavaScript timing, and authentication redirects can introduce a second failure that hides the renderer issue.

8. Troubleshooting checklist

Symptom	Likely cause	What to try
`foreignObject` is completely blank	Renderer limitation or `requiredExtensions` handling	Render the minimal sample with the deployed binary; test removing `requiredExtensions`.
Chrome works, Rotativa does not	Different rendering engines and versions	Inspect the PDF/image artifact made by wkhtmltopdf; record `--version` and OS details.
Text moves when SVG nodes are reordered	Reported element-order sensitivity in wkhtmltopdf	Reduce to one `foreignObject`, then add neighboring nodes one at a time.
Text appears after changing SVG height	Viewport, clipping, or renderer-specific layout behavior	Set explicit root and child dimensions; test several heights and retain the smallest reproducible case.
PDF has no SVG at all	Missing or inaccessible executable, wrong working directory, or process permissions	Verify the Rotativa folder, executable permissions, service account access, and the binary version.
Images or fonts are missing	Relative URLs, blocked local files, or unavailable network resources	Use absolute URLs or inline assets and confirm the renderer process can reach them.
Output differs between PDF and image	`wkhtmltopdf` and `wkhtmltoimage` paths can behave differently	Test both binaries separately and choose the path your product actually needs.
Only production fails	Different binary, OS, fonts, permissions, or HTML data	Log renderer version and environment; reproduce with the production executable in a staging container or host.

9. Reliability, performance, and maintenance

Reliability

Pin the wkhtmltopdf/wkhtmltoimage version used by the application and keep a fixture containing your most complex foreignObject. Re-render that fixture after package, OS, font, or executable changes. Browser success is not a compatibility guarantee for Rotativa.

Performance

Minimize the HTML while diagnosing. External stylesheets, web fonts, large images, and JavaScript add loading and layout work. Once correctness is established, measure the complete controller request under realistic concurrency; the supplied evidence does not establish a universal render-time benchmark.

Cost and operations

Rotativa runs a renderer process on infrastructure you operate, so account for executable packaging, OS support, process permissions, temporary files, memory, and upgrade testing. The cited sources do not provide a cost comparison or prove that another renderer resolves foreignObject; compare alternatives using your real SVGs, required fidelity, deployment model, and maintenance needs.

10. When to evaluate another renderer

If the reduced sample still fails with the exact production binary, test another rendering route against the same SVG and acceptance criteria: text fidelity, fonts, clipping, layout, operating-system support, deployment model, and maintenance status. The available reports document symptoms in Rotativa/wkhtmltopdf; they do not establish a universally superior replacement.
