ASN vs. IP Address vs. CIDR Block: The Difference

Direct answer: An IP address identifies an individual Internet Protocol interface or endpoint. A CIDR block identifies a range of IP addresses by recording a network prefix and prefix length, such as 192.0.2.0/24. An ASN (Autonomous System Number) identifies an autonomous routing system that participates in interdomain routing. They can describe the same network from different angles, but they are not interchangeable.

Use the terms to answer three different questions:

• Which address? Use an IP address.
• Which range of addresses? Use a CIDR block.
• Which routing system or policy domain? Use an ASN.

Quick comparison

Term	Identifies	Typical notation	Operational layer
IP address	One interface or endpoint	192.0.2.53 or 2001:db8::53	Packet addressing
CIDR block	A contiguous address range and its network prefix	192.0.2.0/24, 2001:db8::/32	Allocation, subnetting and route prefixes
ASN	An Autonomous System and its common routing policy	AS64500 or 64500	Interdomain routing, especially BGP

What an IP address identifies

An IP address is a numerical address used by Internet Protocol to identify an interface or endpoint. The address belongs to an interface at a particular time and within a particular routing context; it does not, by itself, identify a company, a person, a data center, or an entire network.

IPv4

IPv4 addresses are 32-bit numbers. People normally write them as four decimal octets separated by dots, for example 192.0.2.53. Each octet represents eight bits, so the address has 2³² possible bit patterns. Addressing rules, reservations and allocation status determine whether a particular value is usable on a public network.

IPv6

IPv6 addresses are 128-bit numbers, conventionally written as hexadecimal groups separated by colons, for example 2001:db8::53. Zero-compression rules allow consecutive groups of zeroes to be represented by :: once in an address. IPv6’s larger width changes notation and allocation practice, but the basic idea is the same: an IP address names an interface or endpoint.

IANA’s numbering overview describes IPv4 as 32 bits and IPv6 as 128 bits and explains the global coordination role for Internet number resources (IANA Internet Number Registry).

What a CIDR block identifies

CIDR means Classless Inter-Domain Routing. CIDR notation combines an address with a slash and a number, such as 192.0.2.0/24. The number after the slash is the prefix length: how many leading bits identify the network prefix. The remaining bits identify addresses inside that range.

Worked IPv4 example

In 192.0.2.0/24, 24 bits are the prefix and eight bits remain for host addresses. Eight variable bits provide 2⁸ = 256 total addresses. The address 192.0.2.53 falls inside that block because its first 24 bits match the prefix.

The block’s mathematical range is 192.0.2.0 through 192.0.2.255. Whether every address can be assigned to a host depends on the context and the addressing plan. Traditional subnet conventions reserve a network identifier and a broadcast address, while point-to-point links, cloud platforms and provider allocations can apply different rules. Do not infer host usability from the count alone.

IPv6 prefixes

The same notation works for IPv6. A prefix such as 2001:db8:1234::/48 fixes 48 leading bits and leaves 80 bits for subnets and interface identifiers. IPv6 networks commonly delegate prefixes rather than treating the entire mathematical range as a flat list of host addresses.

Prefix length and block size

IPv4 prefix	Total addresses	Common use
/32	1	One host route
/31	2	Point-to-point links under supported conventions
/30	4	Small routed links
/24	256	Classic small network or route block
/16	65,536	Large organizational range

For IPv4, total addresses equal 2^(32 - prefix length). For IPv6, use 2^(128 - prefix length). CIDR lets operators aggregate adjacent addresses into fewer routing entries and split allocations into appropriately sized subnets. RFC 4632 is the standards reference for CIDR; the RIPE NCC CIDR charts and guidance provide practical examples.

What an ASN identifies

An Autonomous System is a routing system or domain operated under a common routing policy. Its identifier is an Autonomous System Number, written as an ASN such as AS64500. ASNs are used in exterior routing information exchange, most visibly with the Border Gateway Protocol (BGP).

An ASN is therefore not an IP address and not a shorthand for a CIDR block. One ASN can originate or announce multiple prefixes. A prefix can be announced by different ASNs over time, and an ASN can change its announced set as links, providers and routing policy change. The relationship is operational and may change; it is not a permanent ownership label embedded in the IP address.

RIPE NCC’s operational guidance states: A new ASN should only be used if a new external routing policy is required. In practice, an organization that is multihomed, exchanges routes with external networks, or needs distinct policy control may need an ASN. A private ASN can be used inside a controlled environment where supported; public interdomain announcements have separate requirements.

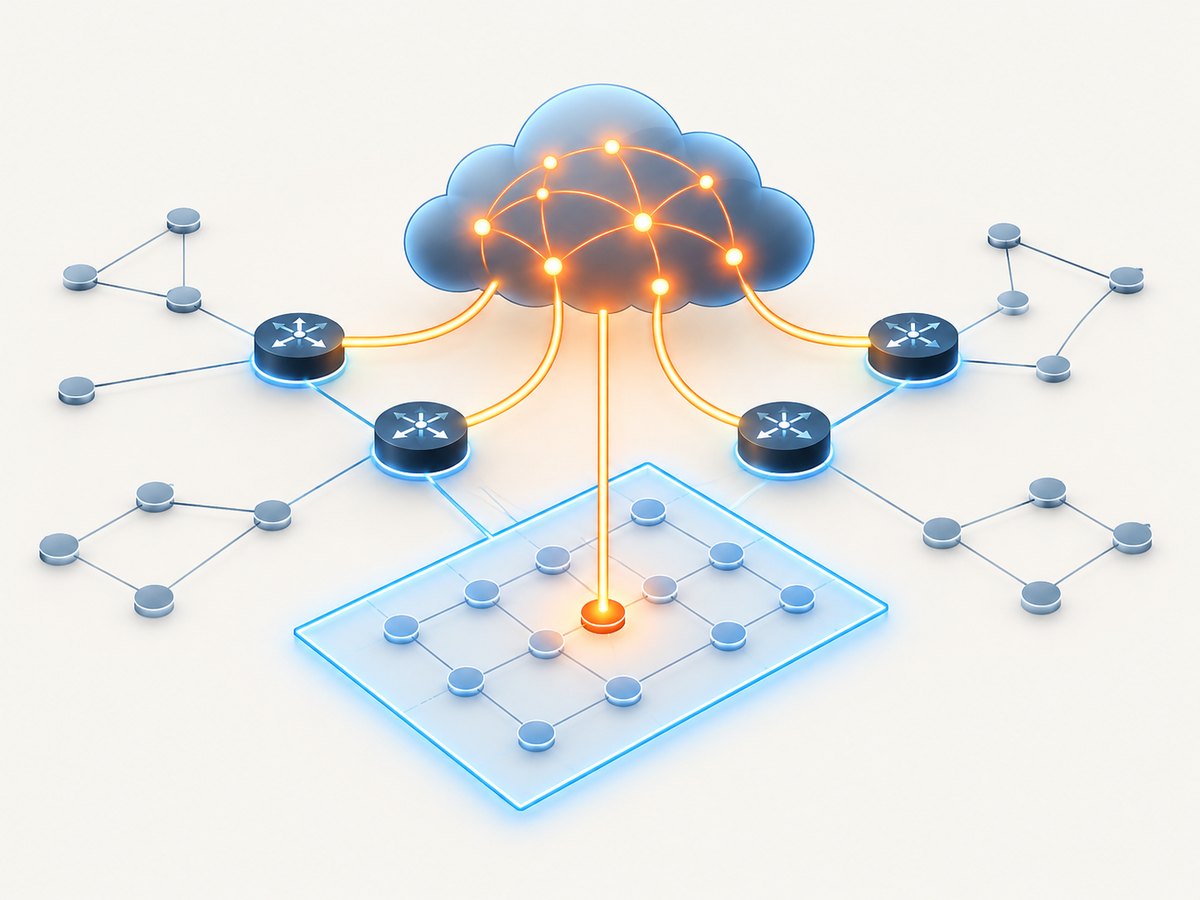

How the three fit together

Consider this example:

• 192.0.2.53 is one IPv4 address.
• 192.0.2.0/24 is the 256-address prefix containing it.
• AS64500 identifies a routing system whose policy may announce that prefix.

The IP address answers “which endpoint?” The CIDR block answers “which contiguous range and prefix?” The ASN answers “which routing system is presenting policy for routes?” A network diagram may show all three on one line, but each label has a different meaning.

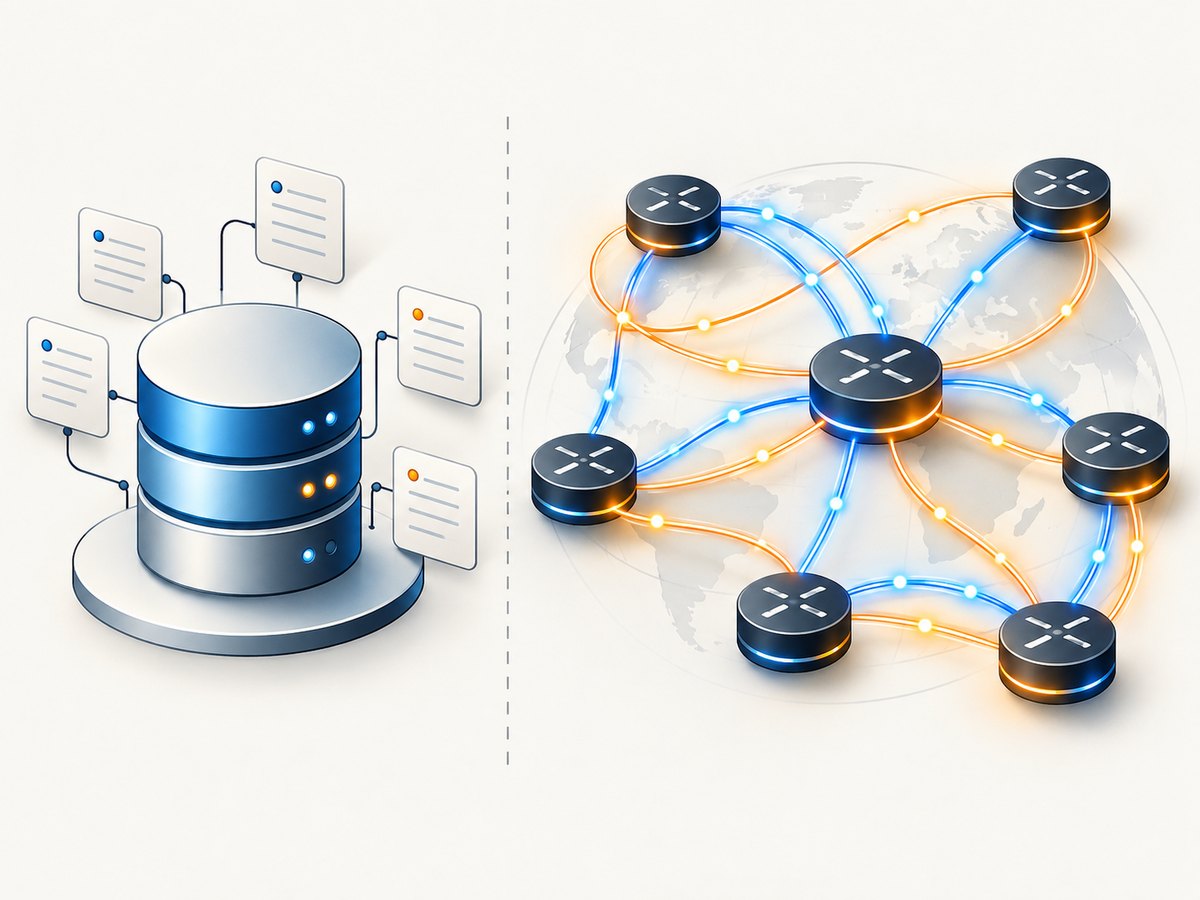

Registration versus reachability

IANA coordinates global Internet number registries and delegates address pools and ASNs to the five Regional Internet Registries (RIRs). RIRs then distribute resources to network operators and other eligible recipients in their regions. That administrative record does not prove that a prefix is currently reachable through BGP.

To investigate reachability, inspect routing data, route collectors, or an operator’s BGP telemetry. To investigate registration, consult the relevant RIR database. A registered prefix can be deaggregated, withdrawn, filtered, hijacked, or unused. Conversely, a route may be visible while registration details are stale or incomplete.

Practical commands and code

These examples help you inspect addresses, calculate prefixes and query public routing information. Replace example values with data you are authorized to examine.

Command-line checks

# Show the address and prefix assigned to local interfaces
ip addr show

# Test whether an address belongs to a CIDR block (Linux iproute2)
ip route get 192.0.2.53

# Resolve a name, then inspect the route selected by the kernel
getent ahosts example.com
ip route get 93.184.216.34

# Look up registration information when whois is installed
whois 192.0.2.53
whois AS64500

Command output reflects your local resolver, routing table and installed tools. It is not a global statement about BGP reachability.

Python: classify an address and summarize a CIDR block

from ipaddress import ip_address, ip_network

address = ip_address("192.0.2.53")
block = ip_network("192.0.2.0/24")

print("version:", address.version)
print("inside block:", address in block)
print("network:", block.network_address)
print("broadcast (IPv4):", getattr(block, "broadcast_address", None))
print("total addresses:", block.num_addresses)

Node.js: test membership without an external package

const ip = "192.0.2.53";
const prefix = "192.0.2.0/24";

function ipv4ToInt(value) {
  return value.split(".").reduce((n, octet) => (n * 256) + Number(octet), 0) >>> 0;
}

const [networkText, lengthText] = prefix.split("/");
const length = Number(lengthText);
const mask = length === 0 ? 0 : (0xffffffff << (32 - length)) >>> 0;
const inBlock = (ipv4ToInt(ip) & mask) === (ipv4ToInt(networkText) & mask);
console.log({ ip, prefix, inBlock });

cURL: query a screenshot of a network documentation page

curl -G "https://api.screenshotneo.com/v1/shot" -d access_key=YOUR_API_KEY --data-urlencode url=https://stripe.com -o shot.webp

Common mistakes

Mistake	Why it is wrong	Better interpretation
Calling /24 an ASN	The slash length describes an address prefix.	Say “IPv4 CIDR block” or “prefix.”
Calling an ASN an IP range	An ASN identifies a routing system.	Look up the prefixes currently originated or transited by that ASN.
Assuming registration proves reachability	Databases record allocation and registration, not live routing.	Check BGP visibility separately.
Assuming every address in a block is assignable	Subnet conventions and provider rules vary.	Check the addressing plan and platform documentation.
Using a new ASN for every network segment	Separate segments do not automatically require separate external policy.	Follow the RIPE NCC rule: obtain another ASN only when a new external routing policy is required.

Troubleshooting checklist

“The IP is in my CIDR block, but traffic fails”

Membership is only a mathematical test. Check local firewall rules, routes, ACLs, NAT, security groups, return paths and whether the address is actually assigned. For an Internet route, verify that the prefix is announced and accepted by upstream providers.

“WHOIS shows an owner, but BGP shows nothing”

This is possible and not contradictory. Registration can remain in place while a prefix is idle or withdrawn. Compare the RIR record’s dates and status with current route-collector data.

“My route is rejected as too specific”

Many operators filter very small IPv4 announcements and apply their own IPv6 prefix-length policies. Aggregate compatible routes where possible, publish the intended origin in an RPKI route origin authorization, and confirm your provider’s filtering rules.

“An ASN lookup returns several organizations”

Check whether the result is a transfer history, a parent company, a hosting provider, or a current route origin. ASN registration and route origin are related datasets, not identical fields.

Performance, reliability and cost considerations

CIDR aggregation reduces routing-table size and lookup work: one summarized prefix can replace many individual routes. Overly broad aggregation, however, can send traffic to the wrong place or hide a failure. Overly specific announcements improve traffic engineering but may be filtered. Design summaries with a deliberate failure and convergence plan.

For reliability, use redundant transit paths when the service requires Internet reachability, monitor both control-plane announcements and data-plane probes, and document which ASN originates each production prefix. Registration records, BGP telemetry and application health checks should be treated as separate signals.

Address resources also have administrative cost. RIR policies determine eligibility, fees and transfer procedures; those policies vary by region and change over time. An ASN is an operational resource, not a performance upgrade. Adding one does not make packets faster or guarantee a better path.

Or skip the browser setup

If your workflow needs visual evidence of a network documentation page, use ScreenshotNeo instead of maintaining a browser automation stack. Its API accepts one GET request and returns PNG, JPEG, WebP or PDF. The same request can be made from Python:

import requests
r = requests.get("https://api.screenshotneo.com/v1/shot", params={"access_key": "YOUR_API_KEY", "url": "https://stripe.com"}, timeout=90)
open("shot.webp", "wb").write(r.content)

Node.js:

const q = new URLSearchParams({ access_key: 'YOUR_API_KEY', url: 'https://stripe.com' });
const res = await fetch(`https://api.screenshotneo.com/v1/shot?${q}`);

See the ScreenshotNeo API documentation for request options. Cookie banners, newsletter popups and chat widgets are removed before the shot. Bot checks, blank pages and failed loads are never billed, and response headers report the page verdict and billing status. An MCP server lets Claude, Cursor and other MCP clients use take_screenshot, get_page_info and capture_pdf. The free plan includes 1,000 screenshots per month with no card; paid plans start at $5 for 3,000. Create a free ScreenshotNeo account.

FAQ

Can one IP address belong to more than one ASN?

It can appear in routing announcements associated with different origins over time. Investigate the observation date, route origin and any multihoming or transfer event.

Is a CIDR block always publicly routable?

No. It may be private, reserved for documentation, unannounced, filtered or used only inside an organization.

Does IPv6 use CIDR?

Yes. IPv6 routing and allocation use prefix notation such as 2001:db8::/32; the prefix length counts leading bits out of 128.

Where should I verify an ASN?

Start with the appropriate Regional Internet Registry database, then compare the registration with current BGP data if you need reachability or origin information.

Summary

An IP address identifies one interface or endpoint. A CIDR block identifies a range through a prefix and slash length. An ASN identifies an autonomous routing system and its interdomain policy. Use the right term for the question you are answering, and keep administrative registration, routing visibility and endpoint reachability as separate checks.
