How to Use FFmpeg with Python Pipes for Windows Screen Recording

Direct answer: On Windows, let FFmpeg capture the desktop with its gdigrab device and let Python control FFmpeg with subprocess.Popen. Write directly to a file unless Python must inspect every frame. If you use a pipe, define the exact format, dimensions, pixel format, frame rate and shutdown protocol on both sides.

FFmpeg documents gdigrab as a Win32 GDI-based screen-capture device. It can capture the full desktop, a region, or a window title or handle. Its options belong before -i in the FFmpeg devices documentation.

1. Choose the data path

Design	Best when	Trade-off
FFmpeg writes a file; Python manages the process	You need start, stop, configuration or status	Simplest path; Python does not receive frames
FFmpeg writes encoded bytes to Python stdout	Python must inspect, upload or relay compressed output	Requires a pipe-compatible output and concurrent stderr handling
Python writes raw frames to FFmpeg stdin	Python captures or transforms frames before encoding	Requires exact dimensions, pixel format, frame rate and timing

This comparison follows the documented FFmpeg pipe interfaces and Python subprocess behavior (FFmpeg FAQ, Python subprocess documentation).

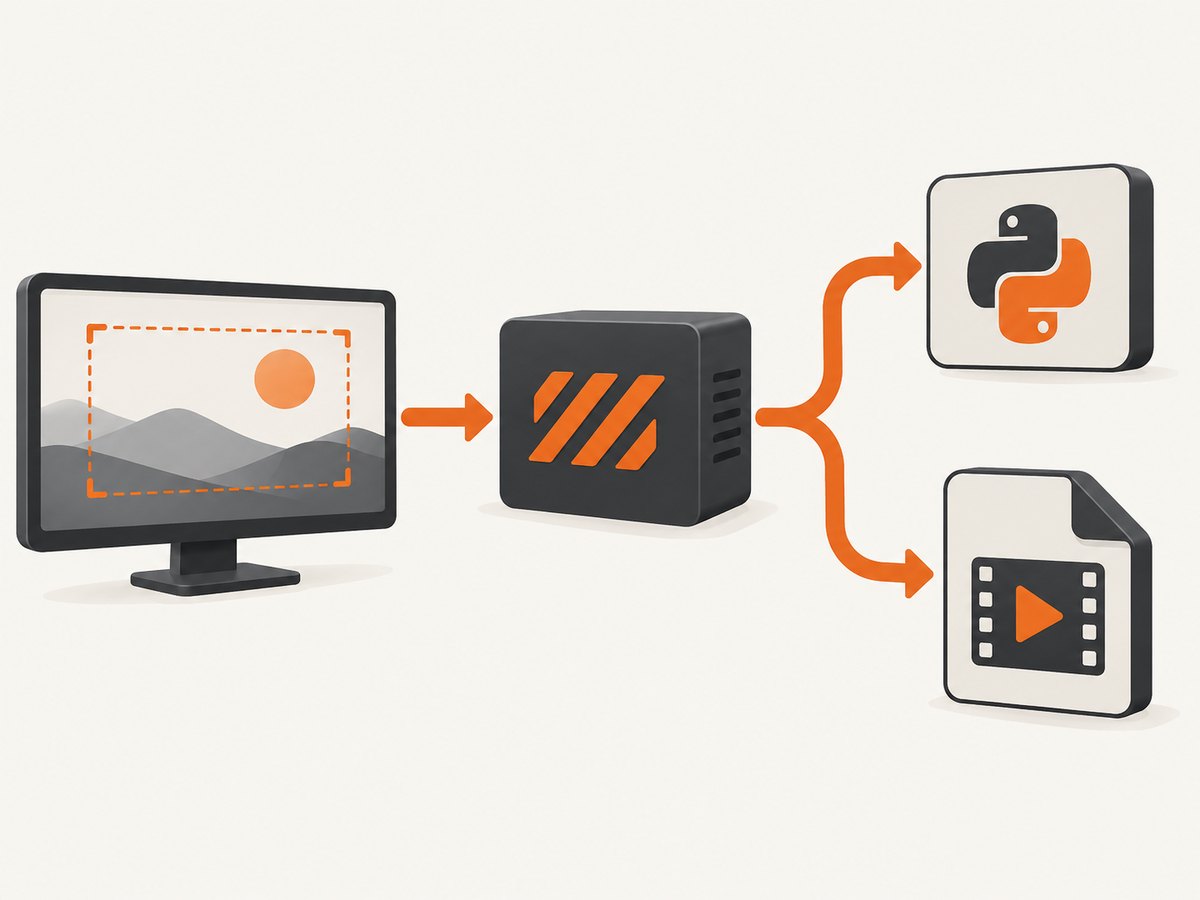

The three data paths: direct file output, FFmpeg-to-Python frames, and Python-to-FFmpeg frames.

2. Install and verify FFmpeg

Install a Windows FFmpeg build containing gdigrab and the encoder you need.
Add the directory containing ffmpeg.exe to PATH, or use an absolute path.
Verify the device:

ffmpeg -hide_banner -devices
ffmpeg -hide_banner -f gdigrab -list_options true -i desktop

Use the output from your installed build as authoritative because enabled devices and codecs vary by build.

3. Recommended implementation: Python controls a file recording

from __future__ import annotations
import subprocess
import threading
import time
from pathlib import Path

FFMPEG = 'ffmpeg'  # Or r'C:\ffmpeg\bin\ffmpeg.exe'
OUTPUT = Path('recording.mp4')
DURATION_SECONDS = 20

command = [FFMPEG, '-hide_banner', '-loglevel', 'warning', '-y',
           '-f', 'gdigrab', '-framerate', '30', '-draw_mouse', '1',
           '-i', 'desktop', '-c:v', 'libx264', '-preset', 'veryfast',
           '-pix_fmt', 'yuv420p', str(OUTPUT)]

process = subprocess.Popen(command, stdout=subprocess.DEVNULL,
                           stderr=subprocess.PIPE, text=True,
                           encoding='utf-8', errors='replace')

def drain_stderr():
    assert process.stderr is not None
    for line in process.stderr:
        print('ffmpeg:', line.rstrip())

threading.Thread(target=drain_stderr, daemon=True).start()
try:
    time.sleep(DURATION_SECONDS)
finally:
    if process.poll() is None:
        process.terminate()
    try:
        process.wait(timeout=10)
    except subprocess.TimeoutExpired:
        process.kill()
        process.wait()

if process.returncode != 0:
    raise RuntimeError(f'FFmpeg exited with code {process.returncode}')
print(f'Wrote {OUTPUT.resolve()}')

Use creationflags=subprocess.CREATE_NEW_PROCESS_GROUP when you need a separate Windows process group for console control events. Graceful shutdown lets FFmpeg finalize the container; a forced kill can leave an unusable file.

4. Capture a region, monitor or window

Put capture options before -i desktop. Offsets are measured from the primary monitor’s top-left. A monitor left of or above the primary display can require negative offsets.

ffmpeg -f gdigrab -framerate 30 -video_size 1280x720 -offset_x 100 -offset_y 80 -i desktop region.mp4
ffmpeg -f gdigrab -framerate 30 -draw_mouse 0 -i desktop no-cursor.mp4
ffmpeg -f gdigrab -framerate 30 -i title='Calculator' window.mp4
ffmpeg -f gdigrab -framerate 30 -i hwnd=0x00123456 window.mp4

The default gdigrab rate is ntsc (30000/1001) when no frame rate is specified, so set -framerate explicitly (device options).

5. When Python needs every frame: FFmpeg stdout to Python

Raw video has no header. Both sides must agree on width, height, pixel format and frame rate. This example uses 1280×720 BGR24.

Raw pipes work only when both sides share the same frame contract and stderr is drained.

import subprocess
import threading

WIDTH, HEIGHT, CHANNELS = 1280, 720, 3
FRAME_SIZE = WIDTH * HEIGHT * CHANNELS
command = ['ffmpeg', '-hide_banner', '-loglevel', 'warning',
           '-f', 'gdigrab', '-framerate', '10',
           '-video_size', f'{WIDTH}x{HEIGHT}', '-i', 'desktop',
           '-f', 'rawvideo', '-pix_fmt', 'bgr24', 'pipe:1']
process = subprocess.Popen(command, stdout=subprocess.PIPE, stderr=subprocess.PIPE)

def drain_stderr():
    assert process.stderr is not None
    for _ in process.stderr:
        pass
threading.Thread(target=drain_stderr, daemon=True).start()
try:
    assert process.stdout is not None
    while True:
        frame = process.stdout.read(FRAME_SIZE)
        if not frame:
            break
        if len(frame) != FRAME_SIZE:
            raise RuntimeError('Incomplete raw frame')
        process_frame(frame, WIDTH, HEIGHT)  # Replace with your function.
finally:
    if process.poll() is None:
        process.terminate()
    process.wait(timeout=10)

Do not pass arbitrary array.tobytes() output unless its layout matches the contract. RGB versus BGR, planar formats, row padding and changed dimensions alter the byte count.

6. When Python supplies frames: Python stdin to FFmpeg

import subprocess

WIDTH, HEIGHT, FPS = 1280, 720, 30
command = ['ffmpeg', '-hide_banner', '-loglevel', 'warning', '-y',
           '-f', 'rawvideo', '-pix_fmt', 'bgr24', '-s', f'{WIDTH}x{HEIGHT}',
           '-r', str(FPS), '-i', 'pipe:0', '-c:v', 'libx264',
           '-pix_fmt', 'yuv420p', 'python-fed.mp4']
process = subprocess.Popen(command, stdin=subprocess.PIPE, stderr=subprocess.PIPE)
try:
    assert process.stdin is not None
    for frame in frame_source():
        if len(frame) != WIDTH * HEIGHT * 3:
            raise ValueError('wrong frame byte length')
        process.stdin.write(frame)
    process.stdin.close()
    process.wait(timeout=10)
finally:
    if process.poll() is None:
        process.kill()
        process.wait()
if process.returncode:
    raise RuntimeError(f'FFmpeg exited with code {process.returncode}')

7. Encoded output over a pipe

If Python needs compressed media, choose an output that works on a non-seekable stream and consume stdout and stderr concurrently. A container requiring seeking may fail on a pipe; an elementary stream or pipe-safe fragmented container is easier to relay.

import subprocess
process = subprocess.Popen(
    ['ffmpeg', '-f', 'gdigrab', '-framerate', '30', '-i', 'desktop',
     '-f', 'mpegts', 'pipe:1'],
    stdout=subprocess.PIPE, stderr=subprocess.PIPE)
# Consume stdout and stderr concurrently, then terminate on a clear stop event.

FFmpeg documents pipes as inputs and outputs, including an image-pipe example using -f image2pipe -c:v mjpeg -i - (FAQ, documentation).

8. Stopping and finalization

Close Python’s stdin when the producer is finished so FFmpeg receives EOF.
Prefer graceful termination, wait for completion, then use a timeout and kill fallback.
Raw pipes carry no timestamps. The declared frame rate becomes the timing model.
Write to a temporary name and rename only after a zero exit code when consumers must not see partial files.

9. Troubleshooting

Symptom	Cause	Fix
`Unknown input format: gdigrab`	Build lacks the device or wrong binary is being called	Run `ffmpeg -devices`; install a build listing the device or use its absolute path.
Black recording	Protected content, minimized window, wrong target or permission issue	Test desktop capture, bring the window forward and verify title or handle.
Region shifted	Offsets use the primary monitor origin	Recalculate offsets; use negative values for displays left or above it.
Python hangs	stdout or stderr pipe buffer is full	Drain both concurrently, redirect unused streams to `DEVNULL`, or use asyncio.
Corrupt file	Process killed before trailer writing	Close stdin or terminate gracefully and wait.
Scrambled raw frames	Wrong dimensions, pixel format, stride or channel order	Make the byte contract identical and read exactly `widthheightbytes_per_pixel`.
High CPU or disk use	Large region, high frame rate or expensive codec	Reduce region or FPS, use a faster preset, or use available hardware encoding.

10. Performance, reliability and cost

Direct file output avoids copying every frame through Python and usually has the fewest moving parts.
1280×720 BGR24 at 30 fps is 82,944,000 bytes per second before encoding. This is a calculation, not a benchmark.
Capture rate, encoder settings, pixel format, monitor count and desktop activity determine load; measure on the target machine.
Use bounded queues if processing can fall behind. Decide whether to block, drop frames or stop.
Monitor return codes, preserve stderr logs, write to a fast local disk and publish only completed files.
Software costs are machine CPU, memory, storage and transfer; FFmpeg and Python do not charge per frame.

11. Checklist

Confirm gdigrab exists.
Set -framerate explicitly.
Put geometry and cursor options before -i.
Use direct file output unless Python needs bytes.
For pipes, document dimensions, pixel format, codec, timing and shutdown.
Keep streams binary and drain stderr.
Handle graceful stop, timeout, return code and partial output.
