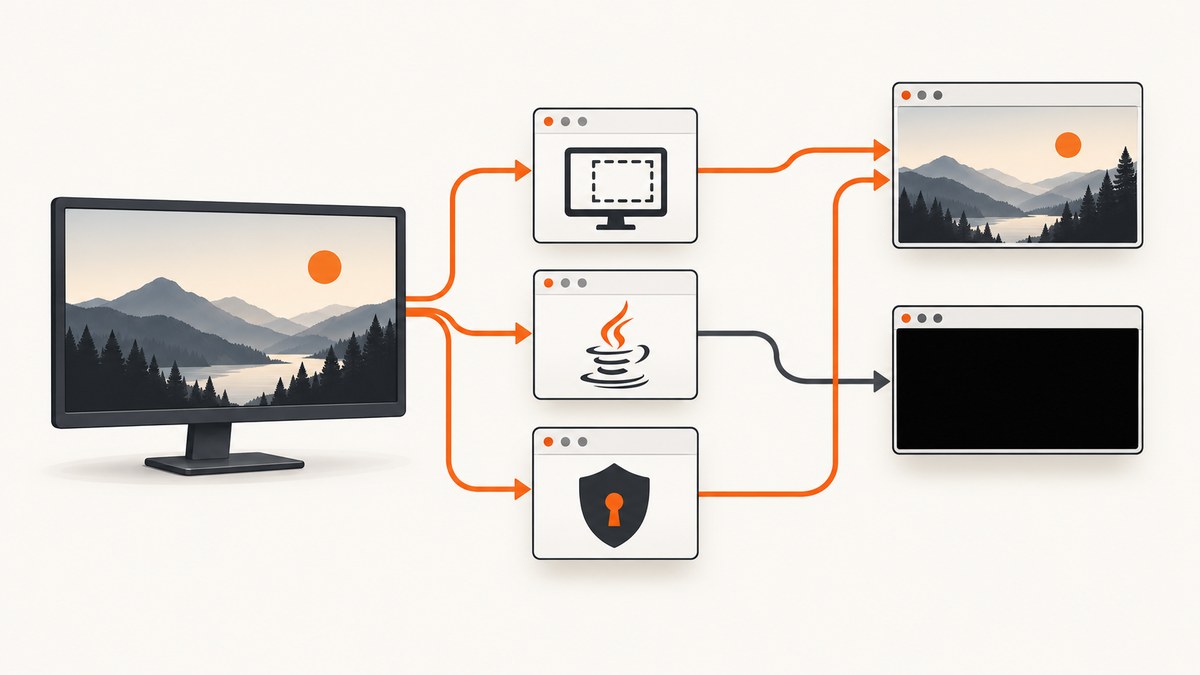

How to Fix Black Window Captures with xwd and Java Robot on Linux

Short answer: a black capture usually means the capture method does not match the session that renders the window. xwd reads X11 windows through DISPLAY; Java Robot also depends on desktop permissions and XTEST when running on X11. Native Wayland content must be captured through the XDG Screenshot or ScreenCast portal, which asks for permission and can return a selected screen, window, area, or active window.

Start by identifying the session, then use the matching path:

echo "$XDG_SESSION_TYPE"
echo "$WAYLAND_DISPLAY"
echo "$DISPLAY"

Session or target	Preferred method	First thing to check
Native X11	`xwd` or Java `Robot`	Correct `DISPLAY`, target window, permissions, and XTEST
XWayland application	Runtime Robot integration or X11 compatibility path	Logical versus device-pixel coordinates and runtime support
Native Wayland	XDG Screenshot or ScreenCast portal	Portal backend, consent, source selection, and PipeWire setup

1. Confirm whether the desktop is X11, Wayland, or XWayland

xwd is an X11 window dumping utility. It selects an X display through DISPLAY and can address a window by ID, by name, or the root window. Native Wayland windows are owned by the compositor, so they are not readable through X11’s window-image operation.

printf 'session=%s\n' "$XDG_SESSION_TYPE"
printf 'wayland=%s\n' "$WAYLAND_DISPLAY"
printf 'display=%s\n' "$DISPLAY"

session=x11: continue with the xwd or Robot sections below.
session=wayland: use a portal for native Wayland content. An X11 client may still appear through XWayland.
An empty DISPLAY commonly means the process is running outside the graphical login session, over SSH without X forwarding, or from a service account.

2. Capture and validate an X11 window with xwd

Capture the whole X11 desktop

xwd -root -out screen.xwd

Convert the XWD file with an image converter installed on the machine:

A valid X11 target and display connection must exist before xwd can produce useful pixels.

convert screen.xwd screen.png

Capture a window by ID

Get the window ID with a desktop utility such as xwininfo, then pass the hexadecimal ID to xwd:

xwininfo
xwd -id 0x3a00007 -out window.xwd
convert window.xwd window.png

Capture by window title

xwd -name "Terminal" -out terminal.xwd
convert terminal.xwd terminal.png

Use root-window screen semantics

When the visible result depends on overlapping windows or independent popup windows, add -screen. This reads through the root window rather than only the selected child window:

xwd -root -screen -out desktop-with-popups.xwd
convert desktop-with-popups.xwd desktop-with-popups.png

If the output is black

Run the command in the same graphical login session as the target window.
Check echo "$DISPLAY". Try the display value used by the desktop, commonly :0, only when you have confirmed it.
Verify the target with xwininfo; a stale ID can refer to a closed window.
Capture -root first. If the root image is also black, the display connection or server access is wrong.
Check the X server access policy. A different user, container, or service account may not be allowed to read the display.
Confirm that the converter can read XWD. Inspect the file type and size before diagnosing the capture itself:

file screen.xwd
ls -lh screen.xwd
identify screen.xwd

3. Capture X11 pixels with Java Robot

Robot.createScreenCapture returns an image containing pixels read from the screen. On X-Window systems, Java can fail when XTEST 2.2 is unsupported or disabled. A security policy can also deny screen reads, return undefined pixels, or throw SecurityException.

Runnable Java example

import java.awt.AWTException;
import java.awt.GraphicsConfiguration;
import java.awt.GraphicsDevice;
import java.awt.GraphicsEnvironment;
import java.awt.Rectangle;
import java.awt.Robot;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;
import javax.imageio.ImageIO;

public class CaptureRegion {
    public static void main(String[] args) throws Exception {
        if (GraphicsEnvironment.isHeadless()) {
            throw new IllegalStateException("A graphical desktop is required; this JVM is headless");
        }

        GraphicsDevice device = GraphicsEnvironment
                .getLocalGraphicsEnvironment()
                .getDefaultScreenDevice();
        GraphicsConfiguration configuration = device.getDefaultConfiguration();

        // Use coordinates from the same GraphicsConfiguration. Replace these
        // values with the target window bounds in that coordinate system.
        Rectangle area = new Rectangle(100, 100, 1200, 800);
        Robot robot = new Robot(device);
        BufferedImage image = robot.createScreenCapture(area);

        // A quick diagnostic: count non-black pixels before blaming PNG output.
        int sample = image.getRGB(Math.min(10, image.getWidth() - 1),
                                  Math.min(10, image.getHeight() - 1));
        System.out.printf("sample pixel ARGB=0x%08x%n", sample);

        if (!ImageIO.write(image, "png", new File("robot.png"))) {
            throw new IOException("No PNG writer is available");
        }
        System.out.println("Wrote robot.png using " + configuration);
    }
}

javac CaptureRegion.java
java CaptureRegion

Robot checklist

Run a non-headless JVM inside the graphical session. A server started by systemd, cron, Docker, or SSH often has no usable display.
Construct Robot only after confirming that the graphics environment is available.
Use the target rectangle in the same screen-coordinate system as the selected GraphicsDevice.
Do not assume window-manager coordinates equal physical device pixels. Scaling and multiple monitors can change the mapping.
Check desktop permission settings and whether XTEST 2.2 is available and enabled.
Inspect a pixel from the returned image before investigating PNG encoding. A valid PNG can still contain an all-black frame.

4. Why Java Robot can fail even when the window is visible

Symptom	Likely cause	Fix
`HeadlessException` or no graphics devices	The JVM has no graphical session	Run it inside the desktop session or use a portal/API capture path
`SecurityException`	Screen-read permission was denied	Grant the desktop/runtime permission and retry
All pixels are black or undefined	XTEST unavailable, wrong display, or compositor restrictions	Validate `DISPLAY`, XTEST, and the session type
Only part of the window is captured	Logical/device-pixel scaling mismatch	Log monitor scale and convert bounds for the selected device
Window moved between locating and capture	Race with the window manager	Locate and capture immediately, then verify the resulting bounds

5. Capture native Wayland windows with the XDG Screenshot portal

Do not expect xwd‘s X11 image operation to read native Wayland compositor content. The XDG Screenshot portal provides permissioned one-shot captures for a screen, window, area, or active window. The normal flow includes user authorization and source selection, so a background process cannot silently assume that a source is available.

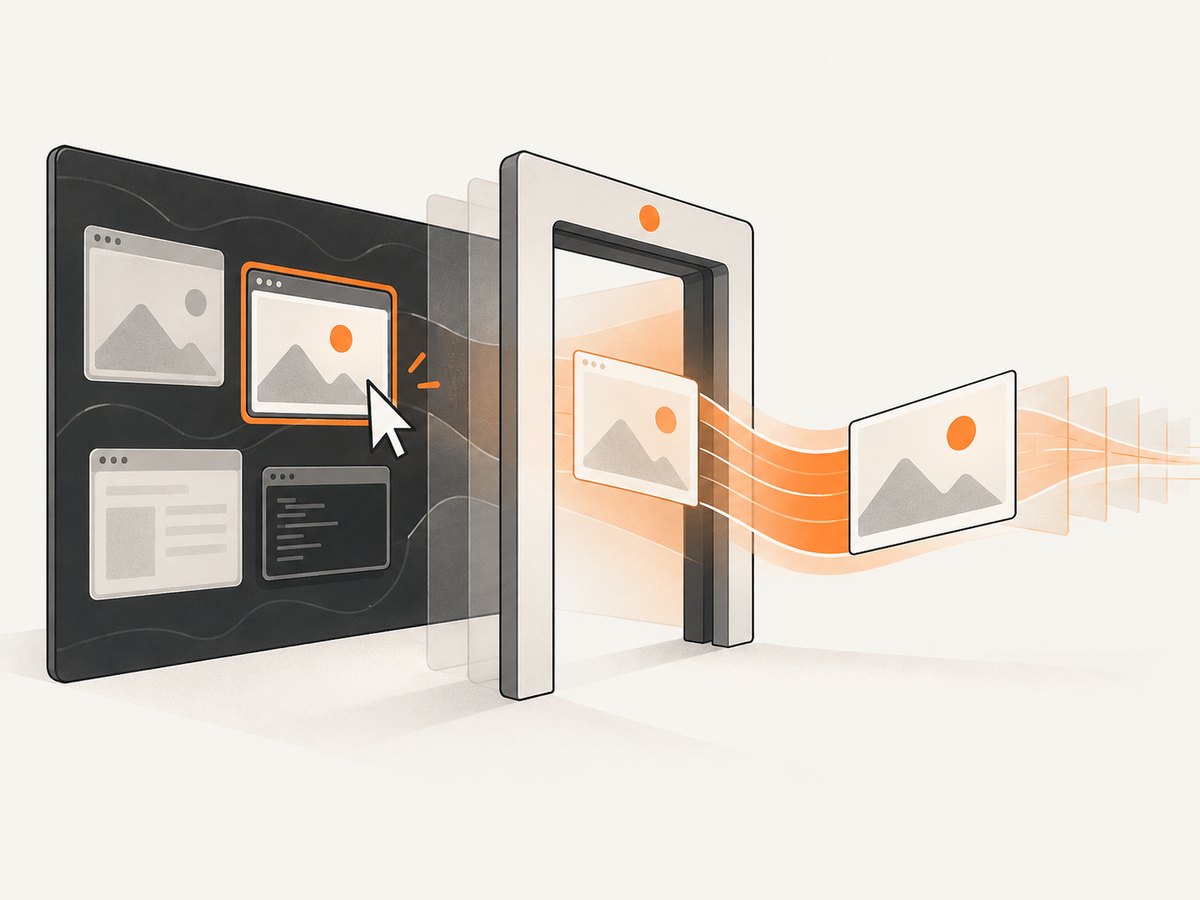

Native Wayland capture goes through an authorized portal and source-selection flow.

For an application that needs a continuous stream, use the ScreenCast portal. It creates a session, asks the user to select sources, and returns PipeWire streams. This is a different workflow from saving one still image.

Portal troubleshooting

No portal response: verify that an XDG desktop portal service and a desktop-specific backend are installed and running.
Permission denied: repeat the request interactively and accept the source-selection dialog.
Wrong monitor or window: check the selected source rather than assuming the first stream is the desired one.
ScreenCast stream will not open: inspect the PipeWire session and the portal backend logs.
Works on one desktop but not another: portal behavior depends on the compositor, backend, and interface versions available in that environment.

6. XWayland and HiDPI coordinate problems

An XWayland application is an X11 client displayed by a Wayland compositor. That compatibility layer can make a window appear addressable through X11 while the compositor still expects portal or logical-coordinate semantics for screen capture.

HiDPI introduces a second failure mode: Java may report bounds in device pixels while a portal or compositor expects logical coordinates. A rectangle can therefore be numerically valid yet select the wrong area or be rejected.

Identify whether the application is native Wayland or XWayland.
Log the Java window bounds, graphics-device bounds, and scale factor.
Compare a capture at scale 1 with a capture at the desktop’s native scale.
Test the JDK/runtime version used by the application; screencast integration and coordinate fixes vary by runtime build.
If exact window pixels remain unreliable, use the compositor’s portal selection flow instead of guessing a rectangle.

7. A repeatable diagnostic workflow

Identify the protocol: record XDG_SESSION_TYPE, WAYLAND_DISPLAY, and DISPLAY.
Prove the display connection: on X11, capture xwd -root before targeting a child window.
Prove the target: use xwininfo and verify the title, ID, and geometry immediately before capture.
Separate capture from encoding: inspect XWD dimensions/file size or sample a Java pixel before writing PNG.
Check permissions: test as the logged-in desktop user and review screen-capture permission dialogs.
Check scaling: compare logical and device coordinates on multi-monitor or HiDPI systems.
Switch paths: use Screenshot or ScreenCast portals for native Wayland; keep xwd/Robot for native X11.
Record environment details: desktop, compositor, JDK version, X server or portal backend, monitor scale, and whether the process runs locally, over SSH, in a container, or as a service.

8. Reliability, performance, and operational notes

Reliability: protocol detection should happen at startup, but retry after transient portal denial or a window-manager race. Treat a black image as a failed capture and validate pixels or image statistics.
Performance: full-screen captures copy more pixels than a window rectangle. Limit the region and avoid repeated captures when a single frame is sufficient.
Concurrency: portal requests may serialize around user consent. Queue requests and associate each response with its selected source.
Security: screen capture can expose unrelated windows. Request the smallest area and least persistent stream that satisfies the job.
Containers and CI: a container needs access to the display or portal session and the correct authentication context; installing xwd alone does not create a display.
Cost: local xwd and Robot have no API charge, but require desktop setup and maintenance. Hosted capture removes that setup at the cost of an API request and network latency.
