MCP Server Architecture

MCP (Model Context Protocol) defines a standard communication surface between an AI application and servers that provide tools, resources, and prompts. The host application owns the user experience, an MCP client manages each server connection, and the MCP server maps protocol requests to your application logic and downstream systems.

The current baseline is MCP 2026-07-28. It has a stateless protocol core: requests carry their own protocol metadata, the legacy initialize/initialized handshake and Mcp-Session-Id are removed, and servers can scale behind ordinary load balancers. Older tutorials describe the 2025-11-25 lifecycle, so version every implementation and test mixed-version clients deliberately. Read the versioned specification before shipping.

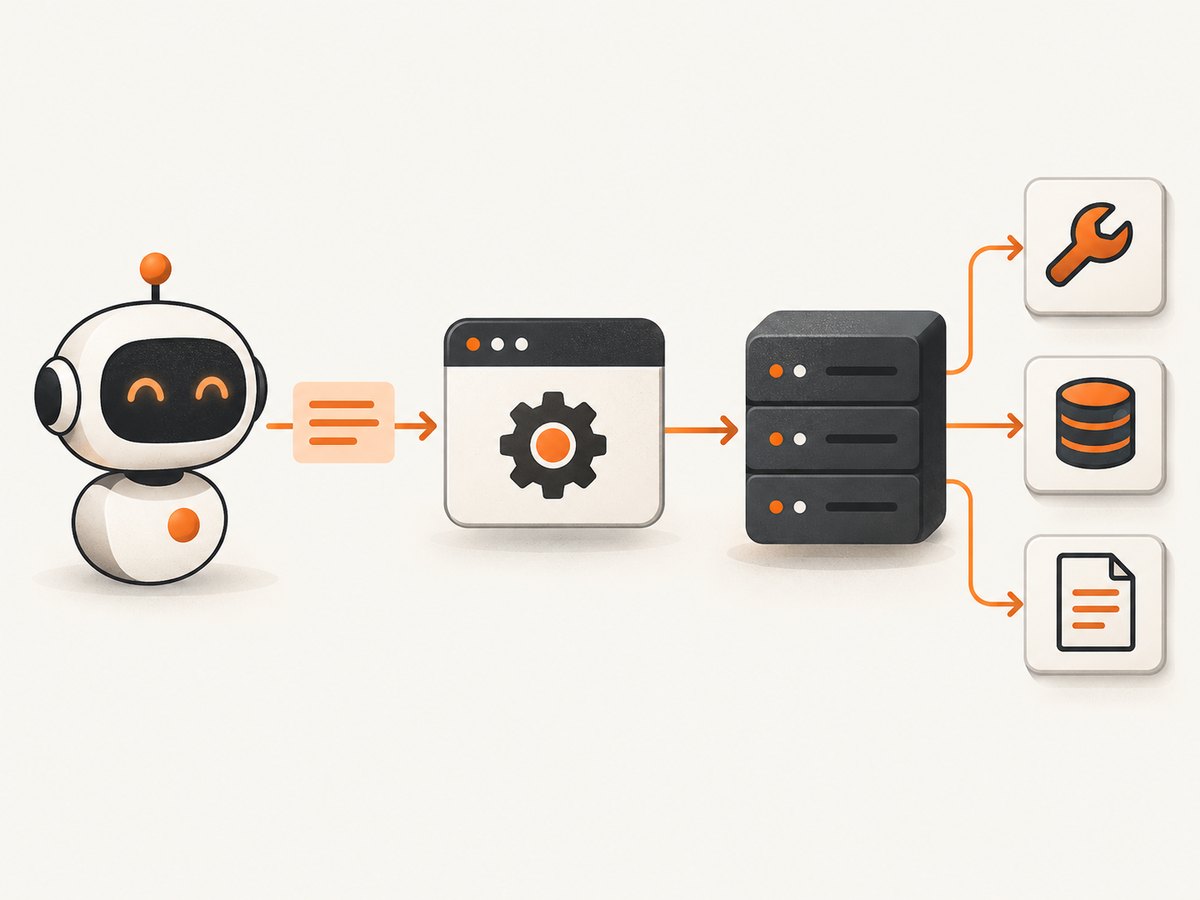

What is an MCP server?

An MCP server is a process or network service that exposes capabilities through MCP. It does not have to contain your business logic; MCP standardizes discovery, schemas, messages, transport, and lifecycle behavior while your server calls databases, APIs, filesystems, browsers, or other services.

Primitive	Purpose	Control model	Typical examples
Tools	Perform an operation	Model-controlled, subject to host policy and authorization	Query an order, create a ticket, capture a screenshot
Resources	Supply contextual data identified by a resource URI	Application-controlled	Files, records, documentation, schemas
Prompts	Reusable interaction templates	User-controlled	Review a pull request, summarize a report

Keeping these control models separate matters. A prompt is not an executable permission. A resource is not an action. A tool should expose the smallest operation and data scope needed for the task.

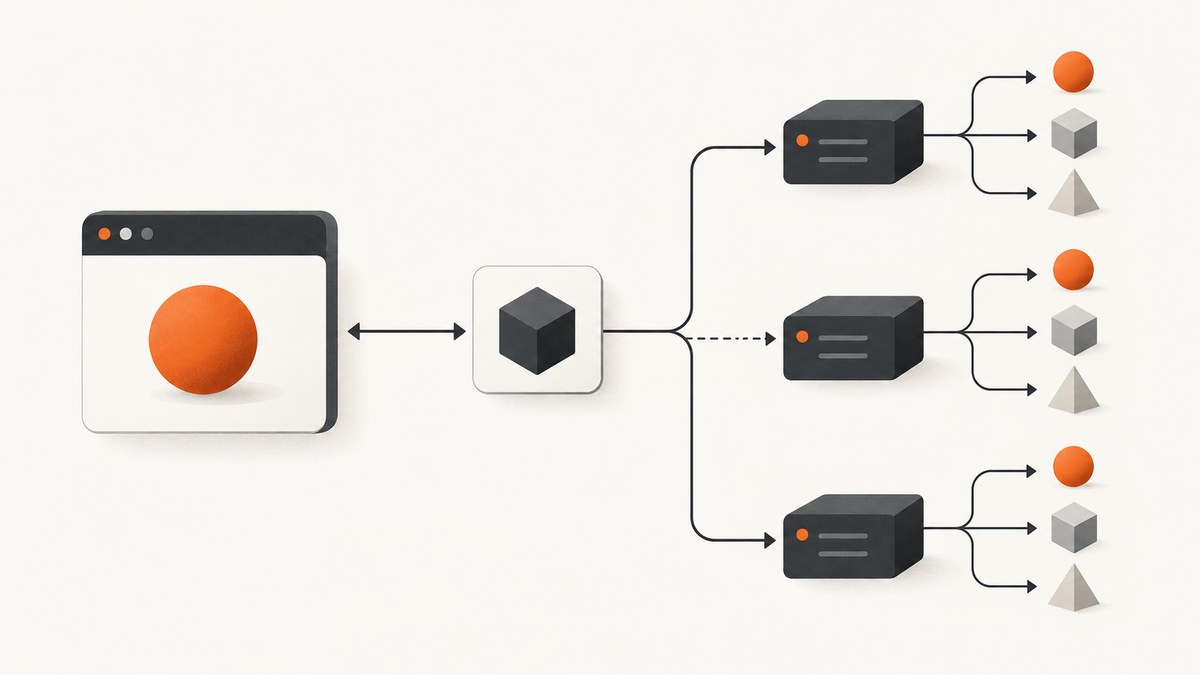

How MCP server architecture fits together

1. Host: the AI application (for example, an IDE or agent) owns conversation state, user consent, model calls, and policy.
2. Client: an MCP client inside or alongside the host maintains a connection to one server and translates host decisions into protocol requests.
3. Transport: stdio or Streamable HTTP carries JSON-RPC messages and binding metadata.
4. Server: validates requests, checks authorization, invokes handlers, and returns bounded structured results.
5. Downstream systems: APIs, databases, queues, browsers, or local files perform the actual work.

user -> AI application (host)
          |
          +-- MCP client ---- stdio ---- local MCP server ---- database/API
          |
          +-- MCP client ---- Streamable HTTP ---- remote MCP server ---- services

The host may connect to many servers. Each client-server relationship has its own capabilities and policy. Do not let a server assume that the model, host, or another server has authenticated a request; authenticate and authorize at the server boundary.

What changed in the 2026-07-28 lifecycle?

The 2026-07-28 release changes the architectural baseline described in many earlier examples:

• There is no protocol-level initialize/initialized exchange in the current lifecycle.
• Mcp-Session-Id is removed. Each request is self-describing and can reach any healthy server instance.
• An optional server/discover call lets a client inspect supported versions, capabilities, and server identity before normal requests.
• When an application needs continuity, issue an explicit opaque handle as a tool result and require that handle in later arguments. A handle references protected state; it is not a credential.
• Streamable HTTP requires Mcp-Method and Mcp-Name headers. Intermediaries can route or meter requests without parsing the JSON body, and servers must reject header/body mismatches according to the binding rules.
• Legacy HTTP+SSE is deprecated with a minimum twelve-month deprecation window. Tasks are now an extension, and server-initiated input can use Multi Round-Trip Requests (MRTR).

Clients may discover the current version and fall back to a legacy initialize handshake for older servers. Record the versions you support, expose compatibility tests, and never treat a draft document as the specification for a released deployment.

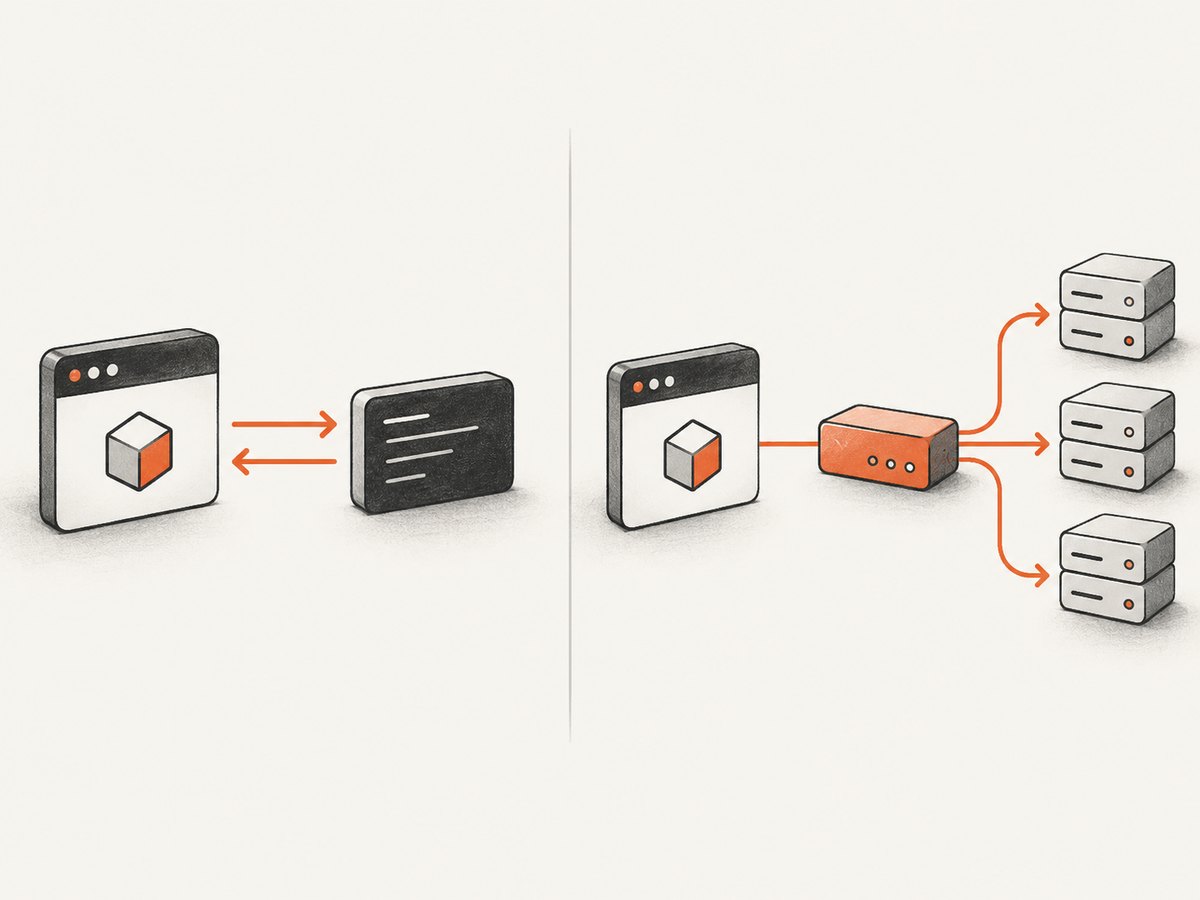

Transport choices: stdio versus Streamable HTTP

Decision	stdio	Streamable HTTP
Connection	Client launches a subprocess; newline-delimited JSON-RPC on stdin/stdout	HTTP POST to one MCP endpoint; response is JSON or a request-scoped SSE stream
Best fit	Local IDE integrations, private workstation tools	Remote services, gateways, shared infrastructure
Scaling	Scale by launching processes	Ordinary load balancing; no sticky protocol sessions required
Security boundary	Process normally has the client user’s privileges	Network authentication, authorization, TLS, and egress controls
Operational burden	Simple deployment, harder fleet observability	Standard HTTP monitoring, rate limits, proxies, and autoscaling

Transport changes framing and metadata carriage, not protocol meaning. Do not confuse current Streamable HTTP with the older HTTP+SSE transport. Choose based on locality and data boundaries, latency, client compatibility, authentication, observability, and operating cost.

Minimal MCP server in TypeScript (stdio)

The official TypeScript SDK demonstrates a server registering a get-forecast tool with a structured input schema and serving it over stdio. The exact SDK API can change with the protocol version, so pin a release and consult its versioned documentation. The following shows the architecture and the JSON-RPC messages a client must be able to produce.

import { createInterface } from "node:readline";

// Minimal educational server: one JSON-RPC request per input line.
// In production, use the version-pinned official TypeScript SDK.
const rl = createInterface({ input: process.stdin, crlfDelay: Infinity });

function reply(id: unknown, result: unknown) {
  process.stdout.write(JSON.stringify({ jsonrpc: "2.0", id, result }) + "\n");
}

rl.on("line", (line) => {
  let request: any;
  try { request = JSON.parse(line); }
  catch { return; }

  if (request.method === "tools/list") {
    return reply(request.id, { tools: [{
      name: "get_forecast",
      description: "Return a weather forecast for a city.",
      inputSchema: {
        type: "object",
        properties: { city: { type: "string", minLength: 1, maxLength: 100 } },
        required: ["city"],
        additionalProperties: false
      }
    }] });
  }

  if (request.method === "tools/call" && request.params?.name === "get_forecast") {
    const city = request.params.arguments?.city;
    if (typeof city !== "string" || city.length === 0 || city.length > 100) {
      return reply(request.id, { isError: true, content: [{
        type: "text", text: "city must be a non-empty string of 100 characters or fewer"
      }] });
    }
    // Replace this deterministic placeholder with an authorized downstream call.
    return reply(request.id, { content: [{
      type: "text", text: JSON.stringify({ city, forecast: "sunny" })
    }] });
  }

  reply(request.id, { isError: true, content: [{ type: "text", text: "Unknown method" }] });
});

Run a local server with the exact command visible to the user before the client launches it. Keep stdout reserved for protocol messages; send diagnostics to stderr. In production, validate JSON Schema arguments, enforce authorization inside each handler, cap output size, and use the SDK’s cancellation and error facilities.

Inspecting a Streamable HTTP server with cURL

HTTP binding details such as authentication and required headers depend on the server’s documented version. A conceptual request looks like this:

curl -i https://example.com/mcp \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json, text/event-stream' \
  -H 'Mcp-Method: tools/list' \
  -H 'Mcp-Name: inventory' \
  -H 'Authorization: Bearer YOUR_TOKEN' \
  --data '{"jsonrpc":"2.0","id":1,"method":"tools/list","params":{}}'

Replace the endpoint, token, and server name with values from that server’s documentation. A production client must verify the response content type, parse either JSON or a request-scoped SSE stream, honor cancellation, and reject a response whose protocol metadata conflicts with its headers.

Calling an MCP-backed HTTP service from Python

import os
import requests

endpoint = os.environ["MCP_ENDPOINT"]
token = os.environ["MCP_TOKEN"]
payload = {
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/list",
    "params": {},
}
headers = {
    "Accept": "application/json, text/event-stream",
    "Content-Type": "application/json",
    "Mcp-Method": "tools/list",
    "Mcp-Name": "inventory",
    "Authorization": f"Bearer {token}",
}
response = requests.post(endpoint, json=payload, headers=headers, timeout=30)
response.raise_for_status()
print(response.headers.get("content-type"))
print(response.text)

Calling an MCP-backed HTTP service from Node.js

const endpoint = process.env.MCP_ENDPOINT;
const token = process.env.MCP_TOKEN;
const body = {
  jsonrpc: '2.0',
  id: 1,
  method: 'tools/list',
  params: {}
};

const res = await fetch(endpoint, {
  method: 'POST',
  headers: {
    'Accept': 'application/json, text/event-stream',
    'Content-Type': 'application/json',
    'Mcp-Method': 'tools/list',
    'Mcp-Name': 'inventory',
    'Authorization': `Bearer ${token}`
  },
  body: JSON.stringify(body)
});
if (!res.ok) throw new Error(`${res.status} ${await res.text()}`);
console.log(res.headers.get('content-type'));
console.log(await res.text());

Designing tools, resources, and prompts

Tools

• Use stable, descriptive names and a precise description that tells a model when the operation is appropriate.
• Publish a strict input schema with required fields, bounds, enums, and additionalProperties: false where possible.
• Validate again in the handler. Schema validation is not authorization.
• Return bounded, structured results. Paginate or summarize large datasets.
• Apply authorization to the operation and each object or tenant ID, then log the decision.
• Expose narrow task-specific tools instead of one large tool with many modes.

Resources

Give each resource a stable identifier and document freshness. The 2026-07-28 release adds ttlMs and cacheScope metadata to list/read responses so clients can make informed caching decisions. Use deterministic list ordering to keep catalogs and prompt caches stable.

Prompts

Prompts are reusable templates selected by a user or host. Keep them parameterized and safe to display before invocation. They should guide an interaction, not silently grant a tool permission.

State, tasks, and long-running work

Stateless protocol handling does not require a stateless application. If a workflow spans requests, store state in your normal database or queue and return an unpredictable handle. On every later request, authenticate the caller, look up the handle server-side, verify that it belongs to the caller and tenant, enforce expiry, and authorize the requested transition.

For work that exceeds a request timeout, use the Tasks extension’s task handles and polling operations. If a user answer is required, MRTR lets the server return an input_required result and lets the client retry with the answer. This avoids keeping a permanently open bidirectional stream. Keep task state separate from protocol identity and document retention and cancellation behavior.

Authentication and security architecture

Consider every MCP server a security boundary because its tools may reach sensitive APIs, data stores, or a local machine.

• No token passthrough: do not accept a token issued for another resource and forward it unchanged. Validate that credentials target your MCP server and enforce audience boundaries.
• OAuth confused deputy: identify the MCP client, request only needed downstream scopes, preserve per-client consent, validate redirect URIs exactly, and protect state and CSRF flows.
• Issuer validation: validate the authorization response issuer (iss) under RFC 9207. Bind credentials to the issuer that minted them. Client ID Metadata Documents are the preferred direction; Dynamic Client Registration remains for compatibility but is deprecated.
• SSRF: treat metadata URLs and redirects as untrusted. Require HTTPS in production, block private and reserved ranges where appropriate, validate redirect destinations, and apply egress controls.
• Handles: possession of an application handle is not authentication. Use high-entropy values, bind them to a verified principal, and expire them.
• Local execution: show the exact launch command and obtain consent before running an untrusted server. Use least privilege, sandboxing, and protected environment variables. Protect any local HTTP listener.

Scaling and reliability

• Keep protocol handlers request-scoped so any instance can serve any request.
• Put durable application state in a shared store only when the workflow needs it; do not recreate protocol sessions just to coordinate instances.
• Set deadlines for downstream calls, propagate cancellation, and return actionable error classes.
• Use idempotency keys for mutating tools that may be retried after a network failure.
• Rate-limit by authenticated principal and operation, and cap concurrency for expensive tools.
• Emit structured logs with request ID, server name, method, tool name, principal, latency, outcome, and downstream status. Never log bearer tokens or sensitive arguments.
• Test malformed JSON, unknown methods, schema violations, unauthorized object IDs, cancellation, duplicate requests, partial downstream failure, and mixed-version clients.

Migration checklist from older MCP tutorials

1. Declare support for 2026-07-28 and any legacy version you still accept.
2. Remove assumptions about initialize, initialized, and Mcp-Session-Id from the current path.
3. Add server/discover handling where capability inspection improves client setup.
4. For Streamable HTTP, send and validate Mcp-Method and Mcp-Name.
5. Replace legacy HTTP+SSE deployments or document the deprecation and an end date.
6. Move long-running behavior to Tasks and interactive pauses to MRTR.
7. Retest authorization, load balancing, retries, cancellation, and cache metadata.

Common errors and fixes

Symptom	Likely cause	Fix
Client waits for initialize forever	Client or server follows an older lifecycle	Pin the protocol version and use the 2026-07-28 discovery/request flow, or explicitly support the legacy fallback.
HTTP request rejected before JSON parsing	Missing or mismatched Mcp-Method/Mcp-Name	Set headers from the actual method and server name; reject body/header mismatches consistently.
Tool appears but calls fail	Schema, authorization, or downstream validation error	Log a redacted request ID, validate arguments, check object-level permissions, and return a bounded actionable error.
Works locally, fails remotely	stdio assumptions, missing environment variables, TLS, proxy, or egress policy	Use Streamable HTTP for remote deployment, configure TLS and proxy limits, and test from the production network boundary.
State leaks between users	Opaque handle is treated as authentication or lookup is not tenant-bound	Authenticate every request, bind handles to the verified principal, use unpredictable values, and expire them.
Large responses exhaust the model context	Unbounded tool or resource output	Paginate, filter, summarize, cap bytes, and expose narrower tools.
Duplicate side effects after retry	Timeout occurred after downstream commit	Use idempotency keys and durable operation records.

Performance, reliability, and cost notes

Protocol overhead is usually smaller than model and downstream-service latency, but tool design determines total cost. Keep schemas and descriptions concise, avoid sending unused resources, cache only when ttlMs and cacheScope permit it, and make list ordering deterministic. Measure server time, downstream time, serialization size, retries, and model tokens separately.

Stdio avoids a network hop and is often simplest for local tools. Streamable HTTP adds network and proxy behavior but enables shared deployment, horizontal scaling, standard TLS termination, and centralized observability. Stateless routing removes sticky-session infrastructure; it does not remove the need to pay for databases, queues, browser workers, or third-party APIs used by your tools.
